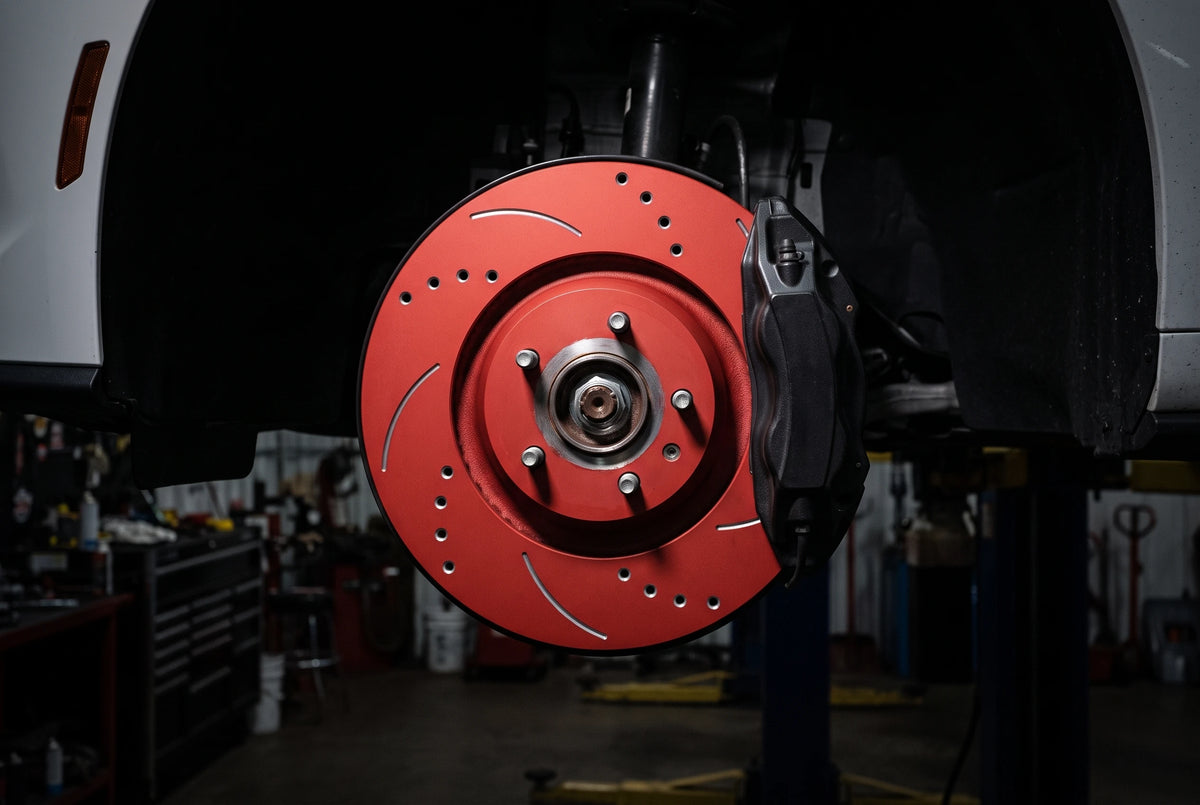

One ring of drilled holes is nice. We went with two. The Double Drilled & Slotted is the most aggressive surface in our lineup, and every feature on it has a job. Here is what each one does, in plain English, no lab coat required, including the parts that most brands would rather not bring up.
The short answer: the Double Drilled & Slotted rotor combines two rings of drilled holes for heat, curved slots for gas and debris, chamfered hole edges to reduce stress risers, and a zinc coating in four finishes. It is built for aggressive street driving, where you want maximum cooling and debris removal.
What Is a Double Drilled and Slotted Rotor?
It is a brake rotor with two surface treatments working together. Drilled holes pass through the braking surface. Curved slots are cut across it. The "double" means two rings of drilled holes instead of one. Rotor names vary from brand to brand, so that is exactly what ours means.
If you are new to the drilled versus slotted question, start with Drilled vs. Slotted Brake Rotors: What Each Surface Actually Does. This post goes one level deeper into the four features that make this rotor what it is, and the kind of driver it is built for.
Feature 1: Dual Drill Sets
Two rings of drilled holes move air through the disc to pull heat out fast. This is the feature that puts "double" in the name, and it exists because heat is the thing every brake system is fighting.
Why Heat Is the Enemy
Braking converts the energy of motion into heat, and that heat has to leave. When it builds faster than it escapes, pads get hot enough to release gases, braking efficiency drops, and you get fade. You press harder. The car does not care.
Fade shows up after repeated or sustained braking, especially at high speed, under heavy load, or on a long downhill. It is not a defect in any one part. It is what happens when a brake system runs out of places to put heat.
Why Two Rings
More holes give air more paths through the disc. More air through the disc means less heat hanging around in it. That is the heat half of how drilled and slotted patterns help reduce brake fade and keep stopping power consistent.
A rotor is also a heat sink, so every hole is a small trade. Drilling removes some mass and adds surface area that helps release heat. Getting that balance right is why the pattern is engineered and machined, not improvised.
The Bonus Job: Water
Drilled holes also give water an exit from the contact surface between pad and rotor, and they help keep a vacuum from forming between them in the wet. Holes and slots both help stop a water film from forming on the road.
You still need to drive like it is raining when it is raining. Tires and following distance matter more than anything machined into a rotor. But a surface that clears water quickly gives the pad a better first bite.
Feature 2: Curved Slots
Curved slots sweep away water, gas, and debris so the pad keeps a clean, constant bite. They do the housekeeping that holes alone cannot, and the curve is not just for looks.
Clearing Gas and Dust
Slots collect and discharge brake dust and debris during and after braking. They also help clear the gas that hot pads can release, so the pad presses on rotor, not on a cushion of gas. That gas layer is the cause of friction fade, where the pedal stays firm but the stopping power drops.
A curved slot is longer than a straight one across the same face. A longer slot collects more dust and debris on each pass, which is exactly why we curve ours.
Keeping the Pad Fresh
Every pass over a slot scrapes the pad face a little. That helps deglaze the pad, which keeps its surface from turning hard and slick. Think of it as windshield wipers for your brakes, minus the streaks.
The honest tradeoff is that slots remove a little pad surface by design. It is also why slotting is preferred in most racing environments: a fresh pad face grips more consistently than a glazed one.
Feature 3: Sinusoid Curve Chamfer
Every hole edge is chamfered. This is the feature nobody sees and everybody benefits from, and it exists because of the one real weakness of any drilled rotor.
What a Stress Riser Is
A stress riser is a spot where stress concentrates, usually a sharp corner or edge. A drilled hole is a whole ring of edge. Cracking in rotors happens mostly in drilled discs, around the edges of holes near the outer edge, because the disc heats and expands unevenly under severe use. Repeated hard braking drives it.
Hairline cracks can appear on any cross drilled disc as normal wear. Severe cracks cannot be repaired, and the rotor has to be replaced. We would rather explain that than pretend it does not exist.
What the Chamfer Does
The chamfer smooths the edge of each hole to reduce those stress risers. On a rotor with two rings of holes, that is a lot of edges treated with care. We think the extra machining is worth it.
It does not make the rotor invincible. It gives every hole a better starting point, which matters most on the rotor built for the hardest street driving.
Feature 4: Zinc Coating in Four Finishes
The rotor wears a zinc (ZRC) coating that resists corrosion, in Silver, Black, Grey, or Red. The finish is where looks and protection meet. It does not change how the rotor stops.
Resists, not defies. Our warranty does not cover corrosion from road salt, harsh chemicals, or acidic or caustic cleaners. Treat the coating like a finish, not a force field. For looks, care, and how to choose, read our guide to zinc coated rotor finishes.
Double Drilled and Slotted vs. the Rest of the Lineup
Our rotors come in seven surface types: Double Drilled & Slotted, Drilled & Slotted, Cross Drilled, Slotted, Diamond Slotted / Dimpled, Peak, and Plain. Each one exists because drivers ask different things of their brakes.
The Double Drilled & Slotted sits at the aggressive end. It is the one to pick when you want maximum cooling and debris removal. If your driving is calmer, a different surface may suit you better, and we are happy to tell you so.
Who Should Run Double Drilled and Slotted Rotors?
This rotor is built for a specific kind of driving. Here is who gets the most out of it, and who should look elsewhere in our lineup.
A Great Fit
- Aggressive street driving with lots of hard stops.
- Spirited driving on performance oriented builds, where brakes get used hard with little time to cool.
- Drivers who want the most heat and debris management we offer.
- Anyone who wants our most aggressive surface on a car that lives on the street.
Not the Right Fit
- Track, race, off road, or competition use. Our warranty covers normal street use only.
- Towing above your vehicle's limits. Not covered, and not a great idea anyway.
- Commercial or fleet use, unless we approve it in writing first. Approved fleet use is covered for 6 months or 6,000 miles, defects only.
Built to Order in the USA
We machine our drilled and slotted rotors in the USA. Every set is built to order, ships from Indiana, and usually ships within four business days. Shipping is free on all U.S. orders.
Ordering brake pads too? Pads ship from Virginia and typically ship within one business day, so they may arrive separately, with their own tracking number. Need it sooner? Contact us and we will review your options.
Install It Right, Then Bed It In
This rotor rewards a proper install. Clean the hub, measure runout, verify minimum thickness, torque the lugs in a star pattern to your vehicle's spec, use a compatible pad compound, and bed the pads and rotors. We strongly recommend installation by a qualified automotive professional.
Every step, with the reasons behind it, is in our brake rotor installation checklist.
Double Drilled and Slotted Rotor FAQ
What does "double drilled" mean?
Two rings of drilled holes instead of one. More paths for air means more heat out of the disc, which is the heat half of how drilled and slotted patterns help reduce fade and keep stopping power consistent.
Why are the slots curved?
A curved slot is longer than a straight one across the same face, so it collects more dust and debris on each pass. Our curved slots sweep water, gas, and debris away from the pad so it keeps a clean, constant bite.
What finishes does it come in?
Four zinc coated finishes: Silver, Black, Grey, and Red. All four are engineered to perform, so pick the one that suits your build. The coating resists corrosion, and our finish guide covers how to care for it.
What does the warranty cover?
New SP Performance brake rotors are covered against defects in materials and workmanship under normal street use for 12 months or 12,000 miles, whichever comes first, from the date of retail purchase by the original end user.
Can I machine or resurface it later?
Please do not. Turning, slot re-cuts, extra drilling, or resurfacing outside spec after sale ends warranty coverage. We did the drilling already. Twice. If your rotor has a problem, contact us before anything goes on a lathe.
The Bottom Line
Two rings of holes for heat. Curved slots for gas and debris. Chamfered edges to reduce stress risers. A zinc coating for protection and looks. It is our most aggressive rotor, built for drivers who use their brakes like they mean it. On the street.
