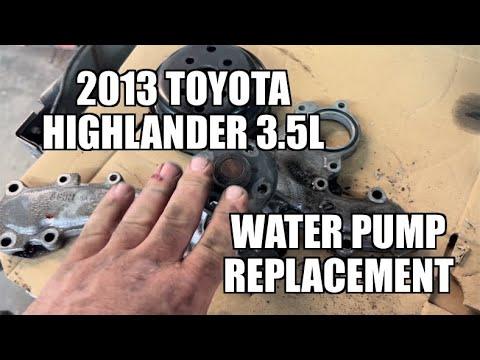

🔧 Highlander - Water Pump Replacement

Replacing the water pump on your Highlander involves draining the engine coolant, removing the serpentine belt, removing the water pump pulley, and installing a new pump with a fresh gasket. The water pump circulates coolant through the engine, so replacing a leaking or noisy pump helps prevent overheating and engine damage.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine. Hot coolant can cause serious burns.
• ⚠️ Disconnect the negative battery cable before working near the belt and pulley area.
• ⚠️ Keep coolant away from pets and children. It is poisonous and often smells sweet.
• ⚠️ Support the Highlander securely if you raise the front. Never rely on a jack alone.
• ⚠️ Do not run the engine with the serpentine belt removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 1/2-inch drive breaker bar
• Torque wrench, 5-80 ft-lb range
• Serpentine belt tool (specialty)
• Pulley holding tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Drain pan, 2-gallon minimum
• Plastic gasket scraper
• Funnel with narrow spout
• Floor jack, rated 2-ton minimum
• Jack stands, rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket - Qty: 1
• Toyota-compatible pink premixed coolant - Qty: 2 gallons
• Serpentine belt - Qty: 1, recommended if cracked, glazed, or coolant-soaked

---

📋 Before You Begin

• Park your Highlander on level ground and let the engine cool fully.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and remove the negative battery cable using a 10mm socket.
• If extra access is needed, raise the front with a floor jack, rated 2-ton minimum and support it with jack stands, rated 2-ton minimum.
• A serpentine belt is the single long belt that drives accessories like the alternator and water pump.
• A torque wrench tightens bolts to an exact tightness so parts do not leak or crack.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover and Splash Shield

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket to remove the small fasteners holding the upper engine cover, if equipped.
• Use a trim clip removal tool and 10mm socket to remove the lower splash shield fasteners under the front of the Highlander.
• Set the clips and bolts in a small tray so they do not get lost.
• Take photos before removing parts.

Step 2: Drain the Coolant

• Place a drain pan, 2-gallon minimum under the radiator drain area.
• Slowly remove the radiator cap only after the engine is completely cool.
• Use a flat-blade screwdriver to open the radiator drain cock at the bottom of the radiator.
• Let the coolant drain until flow slows to a drip.
• Close the radiator drain cock by hand, then gently snug it with the flat-blade screwdriver. Do not overtighten the plastic drain.

Step 3: Loosen the Water Pump Pulley Bolts

• Before removing the belt, use a pulley holding tool (specialty) to keep the water pump pulley from turning.
• Use a 12mm socket and 3/8-inch drive ratchet to slightly loosen the water pump pulley bolts.
• Do not fully remove the pulley bolts yet.
• Loosen pulley bolts while belt holds tension.

Step 4: Remove the Serpentine Belt

• Note the belt routing before removal. Take a clear photo with your phone.
• Use a 19mm socket, 1/2-inch drive breaker bar, or serpentine belt tool (specialty) on the belt tensioner.
• A belt tensioner is a spring-loaded arm that keeps the belt tight.
• Rotate the tensioner to release belt tension, then slide the belt off the water pump pulley.
• Slowly let the tensioner return to its resting position.

Step 5: Remove the Water Pump Pulley

• Use the pulley holding tool (specialty) again to hold the pulley steady.
• Use a 12mm socket to remove the loosened water pump pulley bolts.
• Remove the water pump pulley from the pump hub.
• Set the pulley aside where it will not get bent or dropped.

Step 6: Remove the Old Water Pump

• Place shop towels below the pump area because more coolant may spill.
• Use a 10mm socket, 12mm socket, and 3/8-inch drive 6-inch extension to remove the water pump mounting bolts.
• Keep track of bolt positions if any bolts are different lengths.
• Gently pull the water pump away from the engine.
• If the pump is stuck, tap lightly by hand. Do not pry hard against the aluminum engine surface.

Step 7: Clean the Mounting Surface

• Use a plastic gasket scraper to remove old gasket material from the engine mounting surface.
• Wipe the surface clean with shop towels.
• Do not scratch the aluminum surface. Scratches can cause coolant leaks.
• Make sure no gasket pieces fall into the coolant passages.
• Clean metal seals better.

Step 8: Install the New Water Pump

• Place the new water pump gasket onto the new engine water pump.
• Position the pump carefully against the engine.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket, 12mm socket, and 3/8-inch drive ratchet to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench, 5-80 ft-lb range to tighten the water pump bolts to Torque to 21 Nm (15 ft-lbs).

Step 9: Reinstall the Water Pump Pulley

• Place the pulley back onto the water pump hub.
• Start the pulley bolts by hand.
• Use a pulley holding tool (specialty) to hold the pulley steady.
• Use a 12mm socket and torque wrench, 5-80 ft-lb range to tighten the pulley bolts to Torque to 21 Nm (15 ft-lbs).

Step 10: Reinstall the Serpentine Belt

• Route the belt around the pulleys using your photo as a guide.
• Use the 19mm socket, 1/2-inch drive breaker bar, or serpentine belt tool (specialty) to rotate the tensioner.
• Slide the belt into place on the final pulley.
• Slowly release the tensioner.
• Check that the belt ribs sit correctly in every pulley groove.

Step 11: Refill the Cooling System

• Use a funnel with narrow spout to fill the radiator with Toyota-compatible pink premixed coolant.
• Fill the coolant reservoir to the “FULL” mark.
• Leave the radiator cap off for the first air-bleeding step.
• Reconnect the negative battery cable using a 10mm socket. Tighten it snugly.

Step 12: Bleed Air From the Cooling System

• Start the engine and set the heater to full hot with the blower on low.
• Let the engine idle while watching the coolant level in the radiator.
• Add coolant with the funnel with narrow spout as the level drops.
• When the upper radiator hose gets warm and air bubbles stop appearing, install the radiator cap.
• Let the engine reach normal operating temperature and check for leaks around the water pump.

Step 13: Reinstall the Splash Shield

• Shut the engine off and let it cool enough to work safely.
• Use a trim clip removal tool and 10mm socket to reinstall the lower splash shield.
• Use a 10mm socket to reinstall the upper engine cover, if equipped.
• If raised, remove the jack stands, rated 2-ton minimum and lower the Highlander with the floor jack, rated 2-ton minimum.

---

✅ After Repair

• ✅ Test drive your Highlander for 10-15 minutes while watching the temperature gauge.
• ✅ After the engine cools completely, recheck the radiator and coolant reservoir levels.
• ✅ Inspect around the water pump, hose areas, and radiator drain cock for leaks.
• ✅ Recheck the serpentine belt position after the first test drive.
• ✅ Properly recycle old coolant at an approved collection center. Do not pour it on the ground or into a drain.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$490 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
