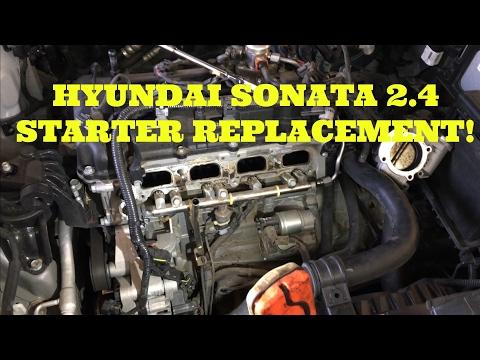

🔧 Sonata - Starter Motor Replacement

The starter motor is mounted at the engine-to-transmission joint, below the intake area. On your Sonata, it can be replaced from above after removing the air-cleaner assembly; lower access may help when guiding the starter out.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

Assumption: This procedure applies to the stock 2.4L gasoline engine.

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before touching the starter. Its main cable has constant battery power and can cause severe arcing.
• Wait at least two minutes after disconnecting the battery before working around electrical connectors.
• Let the engine and exhaust system cool completely.
• Keep metal tools away from the positive battery terminal.
• If raising your Sonata, support it with jack stands. Never work beneath a vehicle supported only by a floor jack.
• Do not allow the starter to hang from its wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch-drive ratchet
• 3/8-inch-drive 6-inch extension
• 3/8-inch-drive universal joint
• 3/8-inch-drive torque wrench (5-80 Nm range)
• 10mm combination wrench
• Flat-blade screwdriver
• Plastic trim removal tool
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor for 2.4L engine - Qty: 1
• Starter terminal protective cap - Qty: 1, if damaged

---

📋 Before You Begin

• Park your Sonata on level ground, select Park, apply the parking brake, and switch the ignition off.
• Open the hood and keep the smart key away from the vehicle.
• Allow the engine to cool before reaching below the intake area.
• Record any preferred radio settings. Disconnecting the battery may reset the clock and some learned settings.
• Place wheel chocks firmly behind both rear wheels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm wrench to loosen the negative battery-terminal clamp.
• Lift the negative clamp off the battery post and position it where it cannot spring back into contact.
• Wait at least two minutes before continuing.

Step 2: Remove the Air Intake Duct

• Use a flat-blade screwdriver or 8mm socket to loosen the clamp connecting the intake duct to the throttle-body inlet.
• Release the duct’s retaining clips with a plastic trim removal tool.
• Disconnect any breather hose attached to the duct by releasing its clamp by hand.
• Lift the intake duct out of the engine compartment.
• Photograph each hose before disconnecting it.

Step 3: Remove the Air-Cleaner Assembly

• Unplug the air-intake sensor connector by pressing its locking tab. Do not pull on the wires.
• Use a 10mm socket and ratchet to remove the air-cleaner housing mounting bolts.
• Lift the complete air-cleaner housing upward and remove it.
• During installation, tighten the air-cleaner housing bolts to 8-10 Nm (71-89 in-lbs).

Step 4: Locate the Starter

• Look down at the joint between the engine and automatic transmission, below the intake area. The starter is the short cylindrical motor attached to the transmission housing.
• Identify the small solenoid connector and the larger battery cable secured beneath a protective rubber cap.
• If lower access is necessary, use a floor jack at the approved front lifting point and place jack stands under both front side support points.
• Gently lower your Sonata onto the jack stands and verify stability before reaching underneath.

Step 5: Disconnect the Starter Wiring

• Press the locking tab and unplug the small starter-solenoid connector by hand.
• Pull the rubber protective cap away from the large cable terminal.
• Use a 12mm socket, extension, and ratchet to remove the terminal nut.
• Lift the cable eyelet off the terminal and move it aside without sharply bending it.
• During installation, tighten the starter terminal nut to 10-12 Nm (89-106 in-lbs).

Step 6: Remove the Starter Motor

• Support the starter with one hand because it will become loose when the bolts are removed.
• Use a 14mm socket, 6-inch extension, universal joint, and ratchet to loosen the two starter mounting bolts.
• Remove the lower bolt first, followed by the upper bolt.
• Pull the starter straight away from the transmission housing, then carefully guide it upward through the air-cleaner opening.
• If necessary, guide it out from below while your Sonata remains securely supported by jack stands.

Step 7: Compare and Position the New Starter

• Place the old and new starters side by side. Confirm that the nose housing, electrical terminals, mounting holes, and pinion gear match.
• Use safety glasses and a clean cloth to wipe loose dirt from the transmission mounting surface.
• Do not apply grease to the starter pinion gear or transmission opening.
• Position the new starter squarely against the transmission housing.

Step 8: Install the Starter Bolts

• Start both mounting bolts by hand for several turns to prevent cross-threading.
• Use a 14mm socket and ratchet to snug the upper and lower bolts evenly.
• Use a torque wrench with the 14mm socket to tighten both starter mounting bolts to 42-54 Nm (31-40 ft-lbs).
• Start every bolt by hand first.

Step 9: Reconnect the Starter Wiring

• Place the large battery-cable eyelet squarely over the starter terminal.
• Thread the terminal nut by hand, then use a torque wrench and 12mm socket to tighten it to 10-12 Nm (89-106 in-lbs).
• Push the protective rubber cap completely over the terminal.
• Reconnect the small solenoid connector until its lock clicks.
• Gently tug the connector body to confirm it is locked.

Step 10: Reinstall the Air-Cleaner Assembly

• Lower the air-cleaner housing into its locating mounts.
• Install its bolts by hand, then use a torque wrench and 10mm socket to tighten them to 8-10 Nm (71-89 in-lbs).
• Reconnect the air-intake sensor connector until it clicks.
• Reinstall the intake duct and reconnect the breather hose.
• Use an 8mm socket or flat-blade screwdriver to tighten the intake clamp until the duct cannot rotate. Do not crush the plastic fitting.

Step 11: Lower the Vehicle and Reconnect the Battery

• If raised, use the floor jack to lift your Sonata slightly, remove both jack stands, and lower it slowly.
• Place the negative battery clamp fully onto the battery post.
• Use a torque wrench and 10mm socket to tighten the negative terminal clamp to 4-6 Nm (35-53 in-lbs).
• Do not overtighten the battery clamp.

---

✅ After Repair

• Confirm that no tools remain in the engine compartment and that every intake hose and electrical connector is attached.
• Without pressing the accelerator, start the engine. The starter should crank smoothly and disengage immediately after the engine starts.
• Switch the engine off and restart it two or three times, allowing at least 15 seconds between attempts.
• Listen for grinding, continued starter operation, clicking, or unusually slow cranking. Switch the ignition off immediately if any occurs.
• Reset the clock and restore preferred audio settings if needed.
• The idle may briefly fluctuate while the engine computer relearns settings after battery disconnection.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
