🔧 Forte - MAP Sensor Replacement

Your Forte’s 2.0L MPI engine does not use a mass airflow (MAF) sensor. It calculates airflow using a manifold absolute pressure (MAP) sensor mounted on the intake manifold; the MAP sensor measures intake pressure so the engine computer can calculate fueling.

Assumption: This procedure is for the original U.S.-specification 2.0L MPI engine.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition completely off and keep the key away from the vehicle.
• 🧊 Allow the engine to cool before working around the intake manifold.
• 🧹 Prevent dirt, tools, or pieces of the old seal from entering the sensor opening.
• 🔋 Battery disconnection is not normally required for this repair.
• 🚫 Do not replace the sensor based only on a MAF-related generic parts listing; your Forte uses a MAP sensor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch drive ratchet
• 1/4-inch drive extension (3-inch)
• Torque wrench (2-20 Nm range)
• Plastic trim tool
• Clean lint-free cloth
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manifold absolute pressure (MAP) sensor - Qty: 1
• MAP sensor sealing O-ring - Qty: 1, if not included with sensor

---

📋 Before You Begin

• 🅿️ Park your Forte on level ground, select Park, and apply the parking brake.
• 🗝️ Switch the ignition off and wait at least one minute before unplugging the sensor.

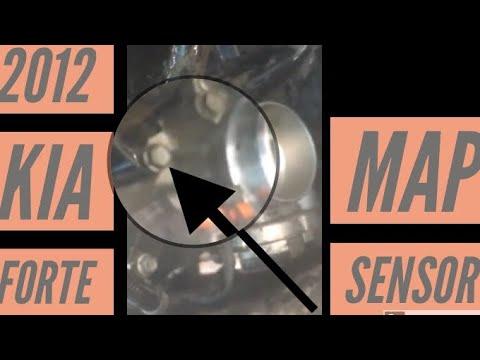

• 📍 Locate the MAP sensor on the intake manifold. It is a small electrical sensor inserted directly into the manifold, not a sensor in the air-filter duct.
• 📱 Take a picture of the connector and sensor position before removal.
• 🧼 Wipe loose dirt away with a clean lint-free cloth before opening the intake manifold.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Put on nitrile gloves and safety glasses.
• If equipped, grasp the plastic engine cover at its mounting points and pull straight upward by hand.
• If a cover fastener is present, remove it with a 10mm socket and 1/4-inch drive ratchet before lifting the cover.
• Pull near the mounts to avoid cracking it.

Step 2: Locate the MAP sensor

• Use a clean lint-free cloth to wipe around the sensor where it enters the intake manifold.
• Confirm that you are working on the manifold-mounted MAP sensor rather than searching the air-intake tube for a MAF sensor.

Step 3: Disconnect the electrical connector

• Press the connector’s locking tab with your finger and pull the connector straight away from the sensor.
• If the tab is difficult to reach, gently depress it with a plastic trim tool. Do not pry on the wires.
• Inspect the connector for bent terminals, moisture, corrosion, or damaged wiring.
• Push inward first to release a tight latch.

Step 4: Remove the old MAP sensor

• Use a 10mm socket, 3-inch extension, and 1/4-inch drive ratchet to remove the MAP sensor retaining bolt.
• Grip the sensor body and gently twist it while pulling straight outward.
• Do not insert a screwdriver between the sensor and plastic intake manifold.
• Cover the opening temporarily with a clean lint-free cloth. Do not push the cloth into the opening.

Step 5: Compare and prepare the new sensor

• Compare the new and old sensors by hand. The connector, sensing tip, mounting tab, and seal position must match.
• Confirm that the new MAP sensor has an undamaged sealing O-ring installed.
• If the O-ring is supplied separately, install it by hand without stretching or twisting it.
• Do not spray cleaner, grease, or sealant onto the sensor tip or O-ring.

Step 6: Install the new MAP sensor

• Remove the clean lint-free cloth and verify that nothing has entered the opening.
• Align the sensor and press it straight into the intake manifold by hand until fully seated.
• Start the retaining bolt by hand to prevent cross-threading.
• Use a 10mm socket and torque wrench to tighten the retaining bolt to 7.8-9.8 Nm (5.8-7.2 ft-lbs).
• Do not overtighten the bolt because the intake manifold and sensor housing can be damaged.

Step 7: Reconnect the electrical connector

• Push the connector onto the new sensor by hand until the lock clicks.
• Gently pull on the connector body to confirm it is locked. Do not pull the wires.

Step 8: Reinstall the engine cover

• If equipped with push-on mounts, align the cover and press down by hand directly above each mount.
• If a cover fastener was removed, install it with the 10mm socket and 1/4-inch drive ratchet. Tighten it only until snug unless its marked service specification is available.
• Check that no tools or cloths remain in the engine compartment.

---

✅ After Repair

• 🚗 Start your Forte and let it idle for several minutes.
• 👂 Check for rough idle, hissing, stalling, or an illuminated malfunction indicator light.
• 🔍 Verify that the MAP sensor is fully seated and its connector remains locked.
• 🛣️ Take a short test drive using light and moderate acceleration.
• 💡 A stored diagnostic code may clear after several successful drive cycles. If it remains, use a compatible OBD-II scan tool to read and clear the code only after confirming the repair.
• 📊 If a MAP-related code returns, inspect the connector, wiring, intake leaks, and sensor reference voltage before replacing more parts.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹16,000 (parts + labor)

DIY Cost: ₹4,000-₹12,000 (parts only)

You Save: ₹1,000-₹4,000 by doing it yourself!

Local labor and imported U.S.-specification part prices vary. This repair takes a shop approximately 0.3-0.5 hours.

---
