🔧 Trax - Mass Air Flow Sensor Replacement

The mass air flow (MAF) sensor measures the air entering your Trax so the engine computer can calculate fuel delivery. Replacement involves unplugging the electrical connector, removing two screws, and carefully installing the new sensor.

Difficulty Level: Beginner | Estimated Time: 20-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the turbocharger and intake components.
• 🧤 Never touch the sensing wires inside the new MAF sensor; skin oil can damage or contaminate them.
• 🔑 Keep the ignition switched off while disconnecting or installing the sensor.
• 🔋 Battery disconnection is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 screwdriver
• 1/4-inch-drive inch-pound torque wrench
• 1/4-inch-drive Torx T20 bit socket
• OBD-II scan tool
• Nitrile mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor with sealing ring - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Trax on level ground, select Park, and apply the parking brake.
• 🧊 Switch off the engine and allow the engine compartment to cool.
• 🔑 Remove the key or keep the keyless-entry transmitter away from the vehicle.
• 📦 Compare the new sensor with the original before removing anything. The connector and mounting holes must match.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

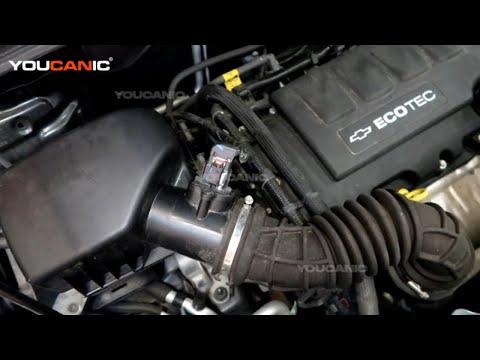

• Open the hood and locate the engine air-filter housing on the driver side of the engine compartment.
• Follow the large air-outlet tube leaving the air-filter housing. The MAF sensor is mounted in this outlet near the air box and has an electrical connector attached.
• Use safety glasses and nitrile mechanic gloves while working around the intake.

Step 2: Disconnect the electrical connector

• Make sure the ignition remains off.
• Slide or lift the connector’s secondary lock, if fitted, using your fingers.
• Press the release tab and pull the connector straight off the sensor. Pull on the connector body, not the wires.
• Inspect the connector for bent terminals, moisture, corrosion, or damaged wiring.
• Do not pry against the plastic sensor housing.

Step 3: Remove the original sensor

• Use the Torx T20 screwdriver to remove the two MAF sensor retaining screws.
• Keep the screws in a safe place if the replacement sensor does not include new ones.
• Lift the sensor straight out of the air-outlet tube. Gently rock it by its plastic body if the sealing ring is snug.
• Do not insert tools into the opening or allow dirt to enter the intake tube.

Step 4: Inspect the mounting opening

• Use your gloved fingers to verify that the old sealing ring did not remain inside the opening.
• Check that the mounting surface is clean and undamaged.
• Do not spray cleaner into the intake tube. Do not reuse a torn, flattened, or missing sealing ring.

Step 5: Install the new MAF sensor

• Hold the new sensor only by its plastic housing. Do not touch the sensing element inside its airflow passage.
• Align the sensor in the same direction as the original. The mounting holes and airflow orientation should line up without force.
• Press the sensor straight into the opening until its flange sits evenly against the intake tube.
• Start both screws by hand, then lightly seat them with the Torx T20 screwdriver.

Step 6: Tighten the retaining screws

• Use the 1/4-inch-drive inch-pound torque wrench and Torx T20 bit socket to tighten both screws evenly.
• Torque to 1.5 Nm (13 in-lbs).
• Do not use foot-pounds. The plastic housing can crack if overtightened.

Step 7: Reconnect the electrical connector

• Push the connector onto the sensor until its release tab clicks.
• Return the secondary lock to its locked position, if fitted.
• Gently tug the connector body to verify that it is secure.

Step 8: Clear stored fault codes

• Connect the OBD-II scan tool to the diagnostic port below the driver-side dashboard.
• Switch the ignition on without starting the engine.
• Use the OBD-II scan tool to read and record any diagnostic trouble codes, then select the tool’s clear-codes function.
• Switch the ignition off and disconnect the scan tool.
• No MAF programming or special relearn procedure is normally required.

---

✅ After Repair

• ✅ Start the engine and let it idle for several minutes. A brief idle adjustment can be normal while the computer updates airflow corrections.
• 👂 Listen for hissing around the air-filter outlet tube, which can indicate an intake-air leak.
• 🔍 Confirm that the check-engine light remains off and that the engine idles smoothly.
• 🛣️ Take a short 10-15 minute test drive using light and moderate acceleration.
• 📊 Recheck for diagnostic trouble codes with the OBD-II scan tool after the test drive.
• ⚠️ If a MAF-related code returns, inspect the intake tube, air-filter housing, connector terminals, and wiring before replacing additional parts.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $110-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
