🔧 Avalon - Fuel Pump Module Replacement

The fuel pump is inside the fuel tank and is reached through a service opening beneath the rear seat cushion. This procedure replaces the complete pump module, which is safer and more reliable for a first-time repair than disassembling the module to replace only its electric motor.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

Assumption: This procedure is for the stock U.S.-market in-tank fuel pump module.

---

⚠️ Safety & Precautions

• 🔥 Gasoline vapor is extremely flammable. Work outdoors or in a well-ventilated area away from flames, heaters, sparks, cigarettes, and power tools with exposed brushes.
• 🧯 Keep a Class B fire extinguisher within reach.
• 🛡️ Wear safety glasses and fuel-resistant nitrile gloves throughout the repair.
• ⚡ Relieve fuel pressure before opening the fuel line, then disconnect the negative battery terminal.
• ⛽ Perform this repair with the tank below one-quarter full to reduce spilling.
• 🚫 Do not use a hammer and metal punch on the retaining ring. A spark can ignite fuel vapor.
• 📱 Toyota issued a fuel-pump safety campaign affecting certain vehicles of this period. Check the vehicle’s recall status through Toyota or NHTSA before purchasing parts because an open campaign may provide a no-cost dealer repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench rated 10-100 Nm
• Toyota fuel pump retaining-ring wrench 09808-14020 or equivalent (specialty)
• Fuel-line disconnect pick set (specialty)
• Nylon trim-removal tool set
• Small flat-blade screwdriver
• Plastic scraper
• Shop vacuum rated for dry debris
• Clean lint-free shop towels
• Fuel-resistant drain pan rated 2-gallon minimum
• Class B fire extinguisher
• Fuel-resistant nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Complete in-tank fuel pump module - Qty: 1
• Fuel pump module tank seal - Qty: 1
• Fuel-line connector retainer clip - Qty: 1
• Fuel-resistant service-hole sealing tape - Qty: 1 roll

---

📋 Before You Begin

• 🚗 Park your Avalon outdoors on level ground, select Park, apply the parking brake, and switch off every electrical accessory.
• ⛽ Reduce the fuel level below one-quarter tank before beginning.
• 🧹 Remove loose items from the rear seat area. Have clean towels ready before opening the tank.
• 🔓 Leave a window lowered before disconnecting the battery so you cannot accidentally lock yourself out.
• 💾 No infotainment service mode, scan-tool command, coding, or fuel-pump registration is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve the fuel pressure

• Use the nylon trim-removal tool to lift the front edge of the rear seat cushion sharply upward, releasing the two floor retainers.
• Lift the cushion slightly, release any wire retainers by hand, and move the cushion outside the work area.
• Use the nylon trim-removal tool to lift the fuel-pump service-hole cover enough to reach the electrical connector.
• Press the locking tab by hand and disconnect the fuel-pump electrical connector.
• Start the engine and let it run until it stalls. Crank it for approximately three additional seconds, then switch the ignition off.
• This removes pressure, not all gasoline.

Step 2: Disconnect the battery

• Open the trunk and locate the battery on the right side behind the trim cover.
• Use the 10mm socket and 3/8-inch drive ratchet to loosen the negative battery-terminal clamp.
• Lift the negative clamp from the post and position it where it cannot spring back into contact.
• Wait at least 90 seconds before continuing.

Step 3: Expose and clean the pump module

• Use the nylon trim-removal tool and plastic scraper to lift the service-hole cover without bending it.
• Use the shop vacuum rated for dry debris to remove dirt around the pump opening. Do not vacuum gasoline or wet fuel residue.
• Use clean lint-free shop towels to wipe the top of the module and surrounding metal.
• Cleanliness keeps dirt out of the tank.

Step 4: Disconnect the fuel line

• Place the fuel-resistant drain pan and clean lint-free shop towels around the connection.
• Use the small flat-blade screwdriver or fuel-line disconnect pick to release the connector’s locking retainer without forcing it.
• Pull the connector straight from the pump pipe by hand. Catch the small amount of gasoline that escapes.
• Cover the disconnected line with a clean lint-free shop towel. Do not insert plugs that may damage or contaminate the connector.
• Inspect the connector and replace its retainer clip if cracked, stretched, or distorted.

Step 5: Mark and remove the retaining ring

• Use the small flat-blade screwdriver to place a light alignment mark across the retaining ring and tank opening without scratching the sealing surface.
• Fit the Toyota fuel pump retaining-ring wrench over the ring. This specialty wrench grips the large ring without creating sparks or breaking its tabs.
• Use the 3/8-inch drive ratchet with the retaining-ring wrench to turn the ring counterclockwise.
• Remove the ring by hand and place it on a clean lint-free shop towel.
• Do not use a steel punch, chisel, or impact tool.

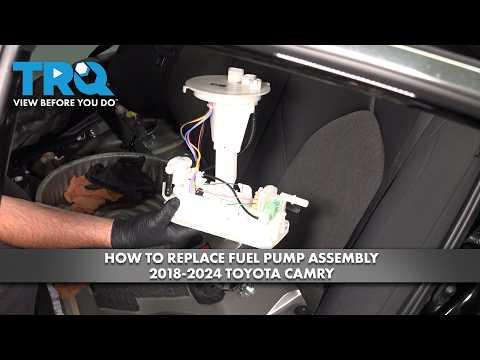

Step 6: Remove the old pump module

• Lift the module slowly by hand while keeping it as upright as possible.
• Tilt the module only enough to guide the fuel-level float through the opening without bending its arm.
• Allow fuel inside the reservoir to drain back into the tank, then place the module in the fuel-resistant drain pan.
• Remove the old tank seal by hand and discard it.
• Use clean lint-free shop towels to clean the sealing surface. Do not let debris fall into the tank.

Step 7: Install the new pump module

• Compare the new and old modules in the fuel-resistant drain pan. Verify that the connector, fuel outlet, locating tab, and float-arm direction match.
• Install the new fuel pump module tank seal into the tank opening by hand. Do not reuse the flattened old seal.
• Guide the float into the tank carefully and lower the module straight into place.
• Align the module locating tab with the matching slot in the tank opening. Do not rotate or pinch the seal.
• Never force the float past the opening.

Step 8: Secure the pump module

• Install the retaining ring by hand and turn it clockwise until its threads or locking ramps engage evenly.
• Fit the Toyota fuel pump retaining-ring wrench and 3/8-inch drive torque wrench.
• Tighten the retaining ring to 85 Nm (63 ft-lbs).
• Confirm the ring is seated evenly and the module has not rotated out of alignment.

Step 9: Reconnect the fuel line and wiring

• Push the fuel-line connector straight onto the pump outlet by hand until it clicks.
• Install the connector retainer clip by hand, then pull gently on the line to confirm it is locked.
• Reconnect the pump electrical connector by hand until its locking tab clicks.
• Leave the service-hole cover open so the connection can be checked for leaks.

Step 10: Reconnect the battery and prime the system

• Place the negative battery clamp onto the battery post.
• Use the 10mm socket and 3/8-inch drive torque wrench to tighten the terminal clamp to 5.4 Nm (48 in-lbs).
• Switch the ignition to ON for five seconds without starting the engine, then switch it OFF for ten seconds.
• Repeat the ON/OFF cycle three times to fill and pressurize the new pump module.

Step 11: Check for leaks and reinstall the seat

• Use the safety glasses and a flashlight to inspect the fuel connector and retaining-ring area. Do not use a flame-style light.
• Start the engine and inspect again. If fuel or strong fresh-fuel odor appears, switch the engine off immediately and correct the connection.
• After confirming the area is completely dry, reseal the service-hole cover using the original seal if intact or fuel-resistant service-hole sealing tape.
• Position the rear seat cushion, route any wiring correctly, and align both front retainers.
• Push firmly downward by hand over each retainer until both click into place.
• Pull upward lightly on the cushion to confirm it is secured.

---

✅ After Repair

• ✅ Let the engine idle for five minutes and confirm it starts normally without extended cranking.
• 🔍 Check the service-opening area once more for liquid fuel or fresh-fuel odor.
• 🚙 Take a short, low-speed test drive, then recheck for leaks with the engine running.
• 📊 Confirm the fuel gauge responds normally. It may take several minutes to stabilize if the float position changed.
• 🪟 Reinitialize the automatic window function if needed by fully closing each affected window and holding its switch upward for approximately one second.
• ⚠️ If the engine will not start, do not continue cranking. Recheck the battery connection, pump connector, fuel-line lock, and correct pump-module installation.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,450 (parts + labor)

DIY Cost: $300-$700 (parts only)

You Save: $550-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
