🔧 Sienna - Engine Air Filter Replacement

The engine air filter keeps dust and debris from entering your Sienna’s engine. Replacement involves opening the air cleaner housing, commonly called the airbox, and installing a new filter.

Difficulty Level: Beginner | Estimated Time: 10-15 minutes

---

⚠️ Safety & Precautions

• Allow the engine to cool before working under the hood.
• Keep dirt, tools, and loose clothing away from the open airbox.
• Do not start the engine while the airbox is open.
• Battery disconnection is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves (5-mil minimum)
• Safety glasses (ANSI Z87.1-rated)
• LED flashlight (500-lumen minimum)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park your Sienna on level ground and apply the parking brake.
• Shift the transmission into Park and turn the engine off.
• Wait until the engine compartment is cool enough to touch safely.
• Remove the new filter from its packaging, but keep it clean and dry.
• No infotainment menu, scan tool, programming, or battery reset is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Hood

• Wear the 5-mil nitrile gloves and ANSI Z87.1 safety glasses.
• Pull the hood-release lever below the driver-side dashboard.
• Release the secondary latch under the front edge of the hood using your gloved hand.
• Raise the hood and secure it with the hood prop rod.

Step 2: Locate the Airbox

• Use the 500-lumen LED flashlight to locate the black plastic airbox in the engine compartment.
• Follow the large black intake duct from the engine toward the airbox if needed.
• The airbox is the two-piece plastic housing that holds the rectangular engine air filter.

Step 3: Release the Airbox Cover

• Use your gloved hands to release the metal retaining clips along the airbox cover.
• Move each clip fully away from the cover so it cannot catch while the cover is lifted.
• Do not disconnect sensors or loosen the intake hose for a routine filter replacement.

Step 4: Lift the Airbox Cover

• Use your gloved hands to lift the clipped side of the cover only far enough to access the filter.
• Disengage the opposite cover tabs carefully without sharply pulling or twisting the attached intake duct.
• Do not force the plastic cover.

Step 5: Remove the Old Filter

• Use your gloved hands to note which side of the old filter faces upward.
• Lift the old engine air filter straight out of the lower airbox.
• Use the 500-lumen LED flashlight to inspect the airbox for leaves, dirt, or signs of water entry.
• Do not allow debris to fall into the clean-air outlet leading toward the engine.

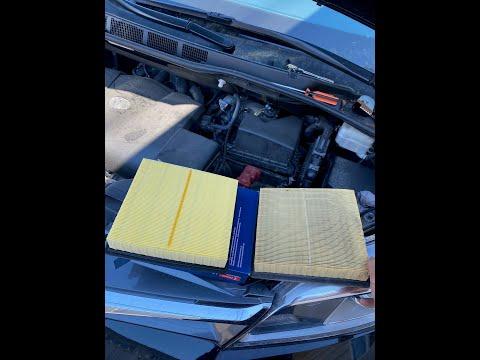

Step 6: Install the New Filter

• Use your gloved hands to place the new filter into the lower airbox in the same orientation as the old filter.
• Make sure the filter’s rubber sealing edge sits flat inside the entire housing channel.
• Check with the 500-lumen LED flashlight that no corner is folded, raised, or trapped under the cover.

Step 7: Close the Airbox

• Use your gloved hands to engage the cover tabs into their matching slots first.
• Lower the clipped side of the cover while keeping the filter seal properly seated.
• Secure every metal retaining clip by hand.
• Confirm the cover is even on all sides and has no visible gap.
• No fasteners are removed, so there is no torque specification for this repair.

Step 8: Close the Hood

• Use your gloved hand to return the hood prop rod to its retaining clip.
• Lower the hood and let it latch from approximately 8-12 inches above the closed position.
• Lift gently at the front edge using your gloved hands to confirm the hood is fully latched.

---

✅ After Repair

• Start the engine and let it idle for approximately one minute.
• Listen for unusual whistling or rushing-air sounds that could indicate an improperly closed airbox.
• If the engine runs poorly or a warning light appears, shut it off and recheck the filter seal, cover tabs, clips, intake duct, and nearby electrical connectors.
• No filter reset, scan-tool procedure, or break-in period is required.
• Inspect the filter more frequently when driving in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $55-$100 (parts + labor)

DIY Cost: $20-$40 (parts only)

You Save: $35-$60 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.3 hours.

---
