🔧 Trax - Alternator Replacement

The alternator charges the battery and supplies electricity while your Trax is running. Replacement requires disconnecting the battery, removing the intake duct and drive belt, disconnecting the alternator wiring, and unbolting the alternator from the engine.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

Assumption: The factory 1.4L turbo engine configuration is unchanged; the procedure is the same for front-wheel-drive and all-wheel-drive models.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring. The large alternator terminal is always connected directly to the battery.
• ⚠️ Let the engine cool completely because the turbocharger and nearby exhaust components can cause severe burns.
• ⚠️ Never work beneath your Trax unless it is supported by properly positioned jack stands.
• ⚠️ Do not allow a wrench to bridge the positive alternator terminal and any metal engine component.
• ⚠️ Support the alternator while removing its final bolt; it is heavier than it appears.
• ⚠️ Do not disconnect the battery while the engine is running to test the alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm shallow socket
• 15mm combination wrench
• 3/8-inch-drive ratchet
• 3/8-inch-drive breaker bar
• 3/8-inch-drive 3-inch extension
• 3/8-inch-drive torque wrench rated 10-100 Nm
• 7mm nut driver
• Small flat-blade screwdriver
• Plastic trim removal tool
• Serpentine-belt routing diagram marker
• Digital multimeter rated 20 volts DC
• Battery terminal cleaning brush
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator for 1.4L turbo engine - Qty: 1
• Serpentine drive belt - Qty: 1 if cracked, glazed, stretched, or contaminated
• Alternator positive-terminal insulating cap - Qty: 1 if damaged

---

📋 Before You Begin

• 📍 Park your Trax on level ground, select Park, apply the parking brake, and switch off all electrical accessories.
• 🛞 Place wheel chocks securely behind both rear wheels.
• 🔑 Remove the ignition key and keep the key fob away from the vehicle.
• 🧊 Allow the engine to cool completely before beginning.
• 📝 Photograph or draw the drive-belt routing before removing the belt.
• 🔋 If the radio has customized settings, record them because disconnecting the battery may reset the clock and some saved preferences.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Open the hood and locate the battery on the driver side of the engine compartment.
• Use a 10mm socket and ratchet to loosen the negative battery-terminal clamp.
• Lift the negative cable from the battery post and position it where it cannot spring back into contact.
• Wait at least two minutes before working on the alternator wiring.

Step 2: Remove the Air-Intake Duct

• Use a 7mm nut driver to loosen the clamps securing the air-intake duct between the air-filter housing and turbocharger inlet.
• Use a small flat-blade screwdriver to release any retaining tab without forcing it.
• Disconnect the attached breather hose by pressing its locking tabs and pulling it straight off.
• Lift the intake duct out of the engine compartment and cover the open turbo inlet with a clean, lint-free cloth.
• Never let debris enter the turbo inlet.

Step 3: Record the Belt Routing

• Use a serpentine-belt routing diagram marker to sketch how the belt passes around each pulley.
• Inspect the belt for cracks, missing ribs, shiny glazing, frayed edges, or oil contamination.
• Replace the belt if any damage is present.

Step 4: Release and Remove the Drive Belt

• Locate the spring-loaded belt tensioner. A tensioner is the pulley assembly that automatically keeps the drive belt tight.
• Fit a 15mm shallow socket and 3/8-inch-drive breaker bar onto the tensioner fastener.
• Rotate the tensioner clockwise slowly to release belt tension. Do not remove or loosen the tensioner fastener.
• While holding the tensioner, slide the belt off the alternator pulley with your free hand.
• Slowly return the tensioner to its resting position, then remove the belt from the remaining pulleys.
• Release the tensioner slowly to prevent damage.

Step 5: Disconnect the Alternator Wiring

• Press the locking tab and unplug the small electrical connector from the alternator. Use a plastic trim removal tool only if the tab is difficult to press.
• Pull back the protective cap covering the large positive terminal.
• Use a 13mm socket, extension, and ratchet to remove the positive-terminal nut.
• Lift the cable eyelet from the terminal and position it away from metal parts.
• Inspect the terminal and cable eyelet for looseness, melted plastic, or green corrosion.

Step 6: Remove the Alternator Bolts

• Use a 15mm shallow socket, extension, and ratchet to loosen the alternator mounting bolts.
• Support the alternator with one hand while removing the final mounting bolt.
• Note the position and length of every bolt so each one returns to its original location.
• Gently rock the alternator to release it from the mounting bracket. Do not pry against the plastic rear housing.

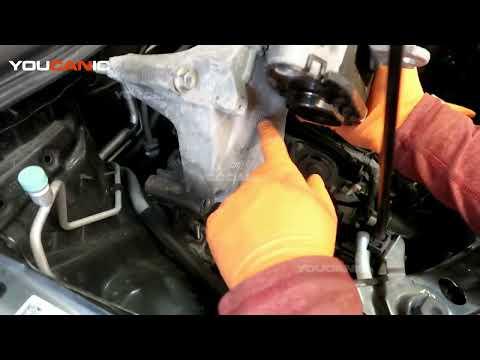

Step 7: Remove the Alternator

• Rotate the alternator carefully and lift it through the opening created by removing the intake duct.
• If clearance is tight, use a plastic trim removal tool to release nearby wiring retainers and move the harness slightly aside.
• Do not stretch wiring, refrigerant lines, or coolant hoses.
• Compare the replacement alternator with the removed unit. Confirm the pulley, connector, mounting ears, and terminal locations match exactly.

Step 8: Install the Replacement Alternator

• Lower the replacement alternator into position and align its mounting ears with the engine bracket.
• Install every mounting bolt by hand for several turns to prevent cross-threading.
• Use a 15mm shallow socket, extension, and torque wrench to tighten the alternator mounting bolts evenly to 50 Nm (37 ft-lbs).

Step 9: Reconnect the Alternator Wiring

• Place the positive cable eyelet squarely over the alternator terminal.
• Install the terminal nut by hand, then use a 13mm socket and torque wrench to tighten it to 9 Nm (80 in-lbs).
• Reposition the protective cap so the terminal is fully covered.
• Push the small electrical connector into the alternator until its lock clicks.
• Gently pull on the connector to verify it is locked.

Step 10: Install the Drive Belt

• Route the belt around all pulleys according to your diagram, leaving the alternator pulley for last.
• Make sure every belt rib sits inside the matching pulley grooves.
• Use the 15mm shallow socket and 3/8-inch-drive breaker bar to rotate the tensioner clockwise.
• Slip the belt over the alternator pulley, then slowly release the tensioner.
• Inspect every pulley again. The belt must be centered and must not hang over any pulley edge.

Step 11: Reinstall the Air-Intake Duct

• Remove the protective cloth from the turbo inlet and verify nothing has entered the opening.
• Position the intake duct fully over both connection points.
• Reconnect the breather hose until its fitting clicks.
• Use a 7mm nut driver to tighten the duct clamps until snug. Do not crush the plastic duct.

Step 12: Reconnect the Battery

• Use a battery terminal cleaning brush to remove corrosion from the negative battery post and clamp if necessary.
• Install the negative cable fully onto the battery post.
• Use a 10mm socket and torque wrench to tighten the negative-terminal clamp to 6 Nm (53 in-lbs).
• Do not overtighten the clamp because the battery post can be damaged.

---

✅ After Repair

• 👀 Before starting the engine, inspect the engine compartment for loose tools, disconnected hoses, and wiring near the belt.
• 🔄 Start the engine and watch the belt from a safe distance. It should run smoothly and remain centered on every pulley.
• 👂 Switch the engine off immediately if the belt walks sideways or you hear grinding, scraping, or repeated chirping.
• ⚡ Set a digital multimeter rated 20 volts DC to DC voltage. Place the red probe on the positive battery terminal and the black probe on the negative terminal.
• 🔋 With the engine off, a charged battery should typically read about 12.4-12.7 volts.
• 💡 With the engine running, check for charging voltage, typically about 13.5-15.0 volts depending on battery condition and computer-controlled charging demand.
• 🚗 Turn on the headlights and blower motor, then verify the battery warning light remains off.
• 🕒 Reset the clock and restore any preferences lost during battery disconnection.
• 🔍 Recheck the belt alignment and alternator connections after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $220-$480 (parts only)

You Save: $330-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
