🔧 Escape - Alternator Replacement

Replacing the alternator on your Escape involves removing the drive belt, disconnecting the electrical connections, unbolting the alternator, and installing the new unit. The alternator charges the battery while the engine runs, so a failed one can cause battery warnings, dim lights, stalling, or a no-start condition.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring. The alternator main cable is always hot when the battery is connected.
• ⚠️ Let the engine cool fully before working near the turbocharger, exhaust, and cooling fan area.
• ⚠️ Keep fingers, tools, and clothing away from the belt path. The belt tensioner is spring-loaded.
• ⚠️ Support the vehicle safely if you raise it. Never rely on a jack alone.
• ⚠️ The battery management system may need time to relearn after battery disconnect. Idle quality and charging behavior can change briefly after repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• 3/8-inch drive breaker bar
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench 5-80 ft-lbs
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Battery terminal brush
• Digital multimeter
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Escape on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool completely before starting.
• 🔋 Open the hood and disconnect the negative battery cable using a 10mm socket. Move the cable aside so it cannot spring back onto the battery post.
• 🧰 A serpentine belt tool is a long, thin wrench used to rotate the spring-loaded belt tensioner in tight spaces.
• 📸 Take a photo of the belt routing before removing the belt. This helps you reinstall it correctly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Work Area

• Use a 10mm socket to disconnect the negative battery cable if you have not already done so.
• Use an 8mm socket or trim clip removal tool to remove the upper engine appearance cover or intake duct fasteners if they block access.
• Use a flat-blade screwdriver to loosen any intake duct clamp that limits access near the alternator.
• Take photos before removing parts.

Step 2: Raise and Secure the Front of the Vehicle

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 2-ton minimum at the front jacking point to raise the front of your Escape.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the stands and lightly shake the vehicle to confirm it is stable.

Step 3: Remove the Lower Splash Shield

• Use an 8mm socket to remove the lower splash shield screws.
• Use a trim clip removal tool to remove any plastic push clips.
• Set the splash shield aside in a safe place.

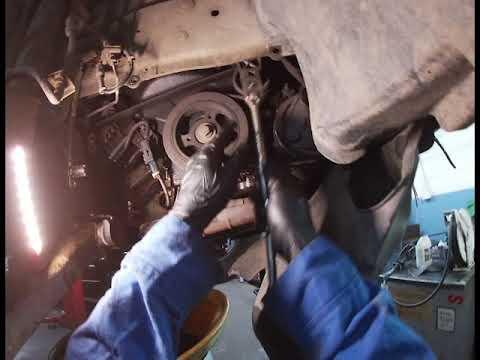

Step 4: Release the Serpentine Belt Tension

• Find the belt tensioner. The tensioner is the spring-loaded pulley that keeps the belt tight.
• Use a serpentine belt tool or 3/8-inch drive breaker bar on the tensioner to rotate it and release belt tension.
• Slide the belt off the alternator pulley first, then slowly release the tensioner.
• Remove the belt from the remaining pulleys if you are replacing it.
• Do not let the tensioner snap back.

Step 5: Disconnect the Alternator Wiring

• Use a flat-blade screwdriver to gently release the locking tab on the alternator electrical connector.
• Pull the connector straight off. Do not pull on the wires.
• Remove the protective cap from the alternator output terminal by hand or with a flat-blade screwdriver.
• Use a 10mm socket to remove the alternator output cable nut.
• Move the cable away from the alternator.
• During installation, tighten the alternator output cable nut to Torque to 10 Nm (89 in-lbs).

Step 6: Remove the Alternator Mounting Bolts

• Support the alternator with one hand.
• Use a 13mm socket and 3/8-inch drive extension to remove the alternator mounting bolts.
• If equipped with a bracket or brace blocking removal, use a 15mm socket to remove the bracket fasteners.
• Lift the alternator out carefully from the engine bay.
• It may be snug in the bracket.

Step 7: Compare the New Alternator

• Place the old and new alternators side by side.
• Confirm the pulley, electrical connector, mounting ears, and output stud are in the same positions.
• Use a battery terminal brush to clean the battery terminal and cable end if corrosion is present.

Step 8: Install the New Alternator

• Position the new alternator into the mounting bracket by hand.
• Start all mounting bolts by hand first. This prevents cross-threading.
• Use a 13mm socket to snug the alternator mounting bolts.
• Use a torque wrench 5-80 ft-lbs to tighten the alternator mounting bolts to Torque to 48 Nm (35 ft-lbs).
• If removed, reinstall the bracket or brace using a 15mm socket and tighten to Torque to 48 Nm (35 ft-lbs).

Step 9: Reconnect the Alternator Wiring

• Install the alternator output cable onto the output stud.
• Use a 10mm socket and torque wrench 5-80 ft-lbs to tighten the output cable nut to Torque to 10 Nm (89 in-lbs).
• Snap the protective cap back over the output terminal.
• Push the electrical connector into the alternator until it clicks.
• Gently tug the connector to make sure it is locked.

Step 10: Install the Serpentine Belt

• Route the new serpentine belt around the pulleys using your photo as a guide.
• Leave the alternator pulley for last because it is usually easiest to reach.
• Use the serpentine belt tool or 3/8-inch drive breaker bar to rotate the tensioner.
• Slide the belt over the alternator pulley.
• Slowly release the tensioner.
• Check that the belt ribs are fully seated in every grooved pulley.
• One rib off can shred the belt.

Step 11: Reinstall Shields and Intake Parts

• Use an 8mm socket to reinstall the lower splash shield screws.
• Use a trim clip removal tool by hand to seat any plastic push clips.
• Use a flat-blade screwdriver to tighten any intake duct clamp you loosened.
• Use an 8mm socket or 10mm socket to reinstall any upper covers or duct fasteners.

Step 12: Reconnect the Battery

• Apply battery terminal protectant to the clean battery terminal if available.
• Reconnect the negative battery cable.
• Use a 10mm socket to tighten the terminal clamp snugly. Do not overtighten.
• Start the engine and listen for belt squeal, grinding, or rubbing.

Step 13: Verify Charging Voltage

• Set the digital multimeter to DC volts.
• Touch the red probe to the positive battery terminal and the black probe to the negative battery terminal.
• With the engine off, a healthy battery should usually read about 12.4-12.7 volts.
• With the engine running, charging voltage should generally be about 13.5-14.8 volts.
• If voltage stays near 12 volts while running, shut the engine off and recheck the alternator connector, output cable, belt routing, and battery connections.

---

✅ After Repair

• ✅ Confirm the battery warning light turns off after the engine starts.
• ✅ Let the engine idle for 3-5 minutes and watch that the belt runs smoothly.
• ✅ Turn on headlights, blower fan, and rear defroster, then recheck charging voltage with the digital multimeter.
• ✅ If the battery was weak or repeatedly discharged, charge and test it. A bad battery can damage a new alternator.
• ✅ Drive gently for 10-15 minutes. The charging system and idle control may relearn after the battery disconnect.
• ✅ Recheck the belt and wiring after the test drive with the engine off.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
