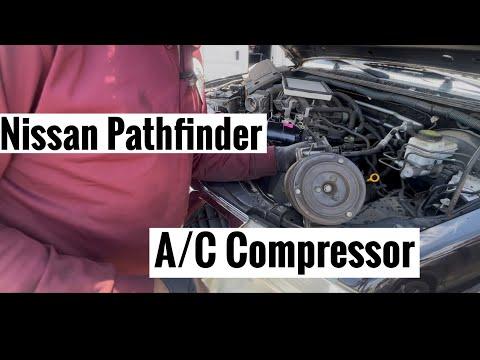

🔧 Pathfinder - A/C Compressor Replacement

Replacing the A/C compressor requires recovering the refrigerant, removing the drive belt and refrigerant lines, balancing the compressor oil, and recharging the system by weight. This is an advanced repair because refrigerant must not be released into the air and incorrect oil or charging can destroy the new compressor.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

Assumption: The original R-134a system and factory-style compressor are installed.

---

⚠️ Safety & Precautions

• ⚠️ Have the R-134a professionally recovered before disconnecting any refrigerant line. Deliberate venting is dangerous and environmentally harmful.
• 🧤 Wear safety glasses and refrigerant-rated gloves. Escaping liquid refrigerant can cause severe frostbite or blindness.
• 🔥 Keep refrigerant away from flames, cigarettes, and very hot surfaces because toxic gases can form.
• 🔋 Disconnect the negative battery terminal before working near the compressor or electric cooling fans.
• 🚫 Never apply power to the compressor with an empty system.
• 🛢️ Use only the oil type specified on the compressor or under-hood A/C label. Do not mix PAG oil types.
• ⚠️ If the old compressor failed internally, metal debris must be removed and contaminated components replaced before installing the new compressor.
• 🚗 Support your Pathfinder with jack stands. Never work beneath a vehicle supported only by a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• R-134a refrigerant recovery machine (specialty)
• R-134a manifold gauge set (specialty)
• Vacuum pump rated below 500 microns (specialty)
• Electronic refrigerant scale accurate to 10 grams (specialty)
• Refrigerant identifier for R-134a (specialty)
• Digital micron vacuum gauge (specialty)
• UV refrigerant leak detector or electronic leak detector (specialty)
• Serpentine-belt tool with 14mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch-drive ratchet
• 3/8-inch-drive extensions
• Torque wrench rated 3-60 Nm
• Torque wrench rated 20-100 Nm
• Plastic trim-clip removal tool
• Flat-tip screwdriver
• Clean graduated oil measuring cylinder
• Clean drain pan
• Rubber refrigerant-line caps
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Refrigerant-rated gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly for R-134a system - Qty: 1
• Compressor suction-line O-ring - Qty: 1
• Compressor discharge-line O-ring - Qty: 1
• Compressor oil matching the under-hood label - Qty: As measured
• R-134a refrigerant matching the under-hood charge label - Qty: As specified
• Serpentine drive belt - Qty: 1 if worn or contaminated
• Receiver-drier desiccant element - Qty: 1 if the system was open or contaminated
• A/C condenser assembly - Qty: 1 if debris cannot be flushed from the condenser
• Expansion valve - Qty: 1 if the old compressor shed metal debris

---

📋 Before You Begin

• 🚗 Park on level ground, select Park, apply the parking brake, and chock the rear wheels.
• 🏷️ Read the under-hood A/C label and record the refrigerant type and exact charge weight. Charge by this label, not by pressure alone.
• 🔍 Diagnose the failure first. Low refrigerant, damaged wiring, a pressure-sensor fault, or an IPDM control fault can imitate compressor failure.
• ♻️ Use an R-134a recovery machine to recover the complete refrigerant charge before loosening any connection.
• 🔋 Turn the ignition off, wait at least three minutes, then disconnect the negative battery terminal with a 10mm socket.
• 🛢️ Keep all refrigerant fittings capped. Moisture damages the desiccant and reacts with refrigerant oil.
• 📏 Check the replacement compressor instructions because some units arrive fully oiled while others contain only shipping oil.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Connect the R-134a manifold gauge set to the high- and low-side service ports.
• Use the refrigerant identifier to verify that the system contains uncontaminated R-134a.
• Use the R-134a recovery machine according to its instructions until recovery is complete and both gauges remain at zero pressure.
• Record the recovered refrigerant weight. A low recovered amount indicates a leak that must also be repaired.

Step 2: Raise and Secure the Vehicle

• Place the floor jack at the approved front lifting point and raise your Pathfinder.
• Lower it securely onto jack stands at the front support points.
• Use the plastic trim-clip removal tool and 10mm socket to remove the lower engine splash shield as needed for compressor access.
• Keep fasteners arranged in removal order.

Step 3: Remove the Drive Belt

• Photograph or sketch the belt routing before removal.
• Fit the serpentine-belt tool with its 14mm socket to the automatic tensioner.
• Rotate the tensioner against spring pressure, slide the belt off the compressor pulley, and slowly release the tensioner.
• Inspect the belt for cracks, glazing, missing ribs, or oil contamination. Replace it if damaged.

Step 4: Disconnect the Compressor Electrical Connector

• Use the flat-tip screwdriver only if needed to release the locking tab without breaking it.
• Unplug the compressor electrical connector and move the harness away from the mounting area.
• Inspect the connector for overheated terminals, corrosion, or oil contamination.

Step 5: Disconnect the Refrigerant Lines

• Confirm with the R-134a manifold gauge set that both sides still show zero pressure.
• Use the appropriate 10mm or 12mm socket to remove the suction- and discharge-line retaining bolts.
• Pull each line straight away from the compressor. Do not pry against the aluminum sealing face.
• Immediately seal the open lines with rubber refrigerant-line caps.
• Discard both old O-rings; they must not be reused.

Step 6: Remove the Old Compressor

• Support the compressor by hand because it is heavier than it appears.
• Use the 14mm socket, ratchet, and extensions to remove the compressor mounting bolts.
• Lower the compressor through the bottom opening without striking the radiator, condenser, or refrigerant lines.
• Retain the mounting bolts unless the replacement compressor supplies new ones.

Step 7: Check for Internal Contamination

• Drain the old compressor into the clean graduated oil measuring cylinder while rotating its shaft by hand.
• Inspect the oil for silver particles, black sludge, or burnt odor.
• If metal is present, replace the receiver-drier element and expansion valve. Replace any parallel-flow condenser that cannot be reliably cleaned.
• Do not flush the new compressor, expansion valve, receiver-drier, or rubber hose sections with an unapproved solvent.
• Metal debris will quickly ruin a new compressor.

Step 8: Balance the Compressor Oil

• Use the clean graduated oil measuring cylinder to measure the amount removed from the old compressor.
• Check the replacement compressor instructions to determine how much oil it already contains.
• Drain or add the specified compressor oil so the installed amount matches Nissan’s component-replacement requirement and the measured loss.
• Rotate the new compressor shaft by hand approximately ten turns to distribute its oil.
• Never add the system’s full oil capacity unless the entire system has been flushed or replaced and is completely dry.

Step 9: Install the New Compressor

• Lift the new compressor into position and start every mounting bolt by hand.
• Use the 14mm socket to snug the mounting bolts evenly.
• Use the 20-100 Nm torque wrench and 14mm socket to tighten the compressor mounting bolts to 45 Nm (33 ft-lbs).
• Reconnect the electrical connector by hand until its locking tab clicks.

Step 10: Reconnect the Refrigerant Lines

• Use refrigerant-rated gloves to install new O-rings of the exact original size.
• Lightly coat each O-ring with the same compressor oil used in the system. Do not soak it.
• Push each fitting straight onto the compressor without twisting or pinching the O-ring.
• Install the retaining bolts by hand, then tighten them with the 3-60 Nm torque wrench and correct socket to 5 Nm (44 in-lbs).
• Do not overtighten the aluminum fittings.

Step 11: Reinstall the Drive Belt

• Route the belt around every pulley according to the routing diagram, leaving the easiest pulley for last.
• Use the serpentine-belt tool with 14mm socket to rotate the tensioner and slip the belt into place.
• Slowly release the tensioner and visually confirm that every belt rib is seated in its pulley groove.
• Use a flashlight to inspect the crankshaft pulley from below.

Step 12: Evacuate and Leak-Test the System

• Connect the R-134a manifold gauge set, vacuum pump, and digital micron vacuum gauge.
• Operate the vacuum pump for at least 45 minutes and evacuate the system below 500 microns.
• Close the manifold valves and switch off the pump. The vacuum should remain stable for at least 10 minutes.
• If vacuum rises, use the UV refrigerant leak detector or electronic leak detector to locate and repair the leak before charging.

Step 13: Recharge by Exact Weight

• Place the R-134a supply on the electronic refrigerant scale.
• With the engine off, introduce as much of the specified charge as the system accepts through the charging equipment.
• Reconnect the negative battery terminal with the 10mm socket and tighten it to 5.4 Nm (48 in-lbs).
• Start the engine, set the blower high and temperature to maximum cooling, then complete charging through the low side according to the recovery-machine instructions.
• Add exactly the refrigerant weight printed on your Pathfinder’s under-hood A/C label. Never charge liquid refrigerant directly into the low side of a running compressor.

Step 14: Reassemble the Lower Covers

• Turn the engine off and disconnect the service couplers using refrigerant-rated gloves.
• Install both service-port caps by hand; the caps are part of the refrigerant seal.
• Use the 10mm socket and plastic trim-clip removal tool to reinstall the splash shield and all retained fasteners.
• Use the floor jack to raise your Pathfinder, remove the jack stands, and lower it carefully.

---

✅ After Repair

• ❄️ Run the A/C at maximum cooling with the doors open for several minutes, then check that vent temperature drops steadily.
• 🔍 Use the electronic leak detector around both compressor fittings, service ports, and the compressor body.
• 👂 Listen for grinding, rattling, belt squeal, or repeated rapid compressor cycling.
• 📊 Compare high- and low-side pressures with Nissan specifications for the measured ambient temperature. Pressure alone does not determine charge quantity.
• 🛢️ Inspect the compressor connections again after a short road test. An oily fitting usually indicates a refrigerant leak.
• ⚠️ Stop the engine immediately if the belt tracks incorrectly or the compressor becomes noisy.

---

💰 DIY vs Shop Cost

Shop Cost: ₹45,000-₹85,000 (parts + labor)

DIY Cost: ₹25,000-₹50,000 (parts only)

You Save: ₹20,000-₹35,000 by doing it yourself!

Local labor rates vary. This repair takes a shop approximately 4-6 hours, and refrigerant recovery and charging equipment may make professional service more economical.

---
