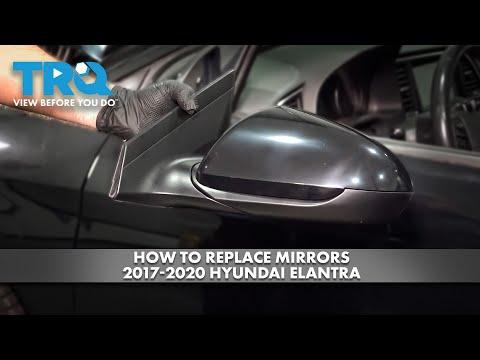

🔧 Elantra - Side View Mirror Assembly Replacement

This procedure replaces the complete driver-side or passenger-side mirror assembly. The mirror is secured behind the triangular interior trim panel, so the main door panel normally stays installed.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour per mirror

Assumption: This procedure covers the factory power-adjustable mirror assembly; replacement features and connector must match the original mirror.

---

⚠️ Safety & Precautions

• ⚠️ Lower the window before starting so you can support the mirror from both sides of the door.
• ⚠️ Disconnect the negative battery cable before unplugging the mirror connector.
• ⚠️ Support the mirror before removing the final nut. It can fall and damage the door or glass.
• ⚠️ Wear gloves because the mirror housing and door edges can be sharp.
• ⚠️ Do not pry with a metal screwdriver; it can damage the trim or side-curtain airbag area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch drive ratchet
• 1/4-inch drive 3-inch extension
• 1/4-inch drive inch-pound torque wrench
• Plastic interior trim removal tool set
• Small plastic pick
• Magnetic parts tray
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power side-view mirror assembly matching the original features - Qty: 1 per damaged side
• Mirror mounting gasket - Qty: 1 per mirror if not included
• Mirror mounting nuts - Qty: 3 per mirror if damaged or missing
• Interior sail-panel retaining clips - Qty: As needed
• Painted mirror cap - Qty: 1 per mirror if not included or transferred

The mirrors do not have to be replaced in pairs. Match the connector, power adjustment, heating, turn-signal equipment, and blind-spot equipment to the original assembly.

---

📋 Before You Begin

• 📋 Park your Elantra on level ground, shift into Park, engage the parking brake, and switch the ignition off.
• 📋 Lower the window completely before disconnecting the battery.
• 📋 Open the hood. Use the 10mm socket and ratchet to disconnect the negative battery cable, then position it where it cannot touch the terminal.
• 📋 Wait at least three minutes before working near the door’s side-curtain airbag area.
• 📋 Compare the replacement mirror’s electrical connector and mounting studs with the original before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Interior Sail Panel

• The sail panel is the small triangular trim piece inside the door, directly opposite the mirror.
• Use a plastic interior trim removal tool to carefully pry the panel away from the door, starting at its upper edge.
• Pull straight inward to release the retaining clips. Do not twist the panel sharply.
• If a small electrical connector is attached, press its locking tab with the small plastic pick and unplug it.
• Keep your free hand ready to catch the panel.

Step 2: Disconnect the Mirror Wiring

• Locate the mirror electrical connector behind the removed sail panel.
• Press the connector’s locking tab with the small plastic pick and pull the connector apart by its plastic body.
• Do not pull directly on the wires.
• Release the wiring harness from any plastic holder using the plastic trim removal tool.

Step 3: Remove the Mirror Mounting Nuts

• Reach through the open window and hold the mirror housing firmly with one hand.
• Use the 10mm socket, 3-inch extension, and ratchet to remove the three mirror mounting nuts.
• Place each nut in the magnetic parts tray so it cannot fall into the door.
• Keep supporting the mirror after the final nut is removed.

Step 4: Remove the Old Mirror

• From outside the door, pull the mirror assembly straight away from the mounting surface.
• Carefully guide the electrical connector and wiring through the door opening.
• If the mirror sticks, use the plastic trim removal tool to gently separate the foam gasket. Do not lever against the painted door with metal tools.
• Inspect the mounting surface and remove loose gasket material by hand while wearing work gloves.

Step 5: Prepare the Replacement Mirror

• Check that the replacement mirror has three correctly positioned mounting studs and an undamaged foam gasket.
• Compare the electrical connector with the original connector. The shape, locking tab, and terminal count must match.
• If the replacement requires the original painted cap, use a plastic interior trim removal tool to release the cap tabs carefully and transfer it before installation.
• Do not install the mirror if the gasket is folded, missing, or damaged. The gasket helps prevent wind noise and water entry.

Step 6: Install the Replacement Mirror

• Guide the replacement mirror’s connector and wiring through the opening from outside the door.
• Seat the mirror and gasket flat against the door. Make sure no wiring is trapped beneath the gasket.
• Hold the mirror in position through the open window.
• Start all three mounting nuts by hand to prevent cross-threading.
• Use the 10mm socket and ratchet to tighten the nuts evenly in several passes.
• Use the 10mm socket and inch-pound torque wrench to tighten each nut to 9 Nm (80 in-lbs).
• Do not overtighten the nuts; excessive force can crack the mirror base.

Step 7: Connect the Mirror Wiring

• Push the mirror connector into the door connector by hand until the locking tab clicks.
• Gently tug the connector bodies to verify they are locked together.
• Secure the harness in its original holder using your fingers or the plastic trim removal tool.
• Make sure the wiring cannot interfere with the window mechanism.

Step 8: Reinstall the Sail Panel

• Inspect the sail-panel clips. Replace any broken clips before installation.
• If equipped with an attached connector, reconnect it by hand until it clicks.
• Align the sail-panel clips with their door openings.
• Press the panel into place using the palm of your hand until every clip is fully seated.
• Do not strike the panel or press directly against a speaker grille.

Step 9: Reconnect the Battery

• Place the negative battery cable back over its terminal.
• Use the 10mm socket and ratchet to snug the terminal nut.
• Use the 10mm socket and inch-pound torque wrench to tighten the negative terminal nut to 5 Nm (44 in-lbs).
• Confirm the terminal cannot rotate by hand.

---

✅ After Repair

• ✅ Switch the ignition on and operate the mirror through its full up, down, left, and right range.
• ✅ If equipped, test mirror heating with the rear-window defogger and verify the turn signal or blind-spot indicator operates normally.
• ✅ Raise and lower the door glass while listening for rubbing or clicking. Stop immediately if the glass contacts wiring.
• ✅ Verify the sail panel sits flush and the mirror gasket has no visible gaps.
• ✅ Sit in the normal driving position and adjust the mirror before driving.
• ✅ Reset the clock and any saved radio settings if they were lost during battery disconnection.
• ✅ If the automatic window function no longer works, close the window completely and hold the switch upward for approximately three seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $225-$500 per mirror (parts + labor)

DIY Cost: $70-$250 per mirror (parts only)

You Save: $155-$250 per mirror by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour per mirror.

---
