🔧 F-150 - Rear Turn Signal Bulb Replacement

Your F-150 uses a dual-filament bulb in each rear lamp for the turn signal, brake light, and tail light. Replacing it requires removing the complete tail-lamp housing, but no wiring repair or programming is needed.

Difficulty Level: Beginner | Estimated Time: 15-25 minutes

---

⚠️ Safety & Precautions

• ⚠️ Switch off all exterior lights and remove the ignition key before starting.
• 🧤 Allow the bulb to cool before touching it.
• 🔌 Battery disconnection is not required for this repair.
• 💡 Do not force the lamp sideways; its locating pins can break.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch drive ratchet
• 1/4-inch drive extension (3-inch)
• Inch-pound torque wrench (20-100 in-lbs range)
• Clean nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 4057K dual-filament rear turn signal bulb - Qty: 1
• 4057K dual-filament rear turn signal bulbs - Qty: 2 if replacing in pairs

---

📋 Before You Begin

• 🅿️ Park your F-150 on level ground, shift into Park, and apply the parking brake.
• 🔑 Turn the ignition and exterior-light controls off, then remove the key.
• 🚪 Lower the tailgate fully to expose the two tail-lamp retaining bolts.
• 🧤 Put on clean gloves and safety glasses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Tail-Lamp Bolts

• Use an 8mm socket, 3-inch extension, and 1/4-inch drive ratchet to remove the two bolts along the inside edge of the affected tail lamp.
• Place both bolts somewhere safe so they cannot fall into the bed or bumper area.

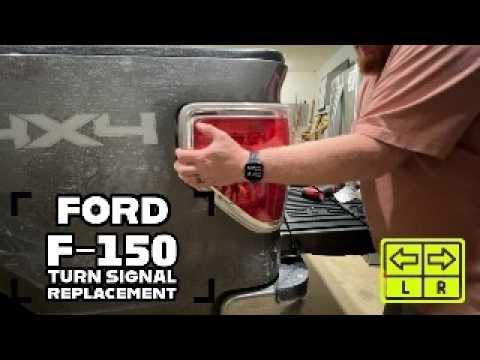

Step 2: Release the Tail-Lamp Housing

• Hold the housing with both gloved hands and pull it straight rearward, parallel with the side of the truck.
• The plastic locating pins are press-fit guides that align the lamp with the body.
• Do not twist the housing outward or pry against the painted body.
• Use gentle, even pressure with both hands.

Step 3: Remove the Turn-Signal Socket

• Support the housing with one hand so its wiring is not stretched.
• Locate the upper large bulb socket; this is the rear stop, turn-signal, and tail-light socket.
• Use your gloved hand to rotate the socket counterclockwise approximately one-quarter turn.
• Pull the socket straight out of the housing.

Step 4: Replace the Bulb

• Use your gloved fingers to pull the old bulb straight out of the socket. This is a wedge-base bulb, meaning it pulls out rather than unscrews.
• Inspect the socket for melted plastic, green corrosion, or burned terminals. Replace the socket separately if any damage is present.
• Align the base of the new 4057K bulb with the socket and press it straight in until fully seated.
• Do not use a tool to grip or install the glass bulb.

Step 5: Test the New Bulb

• Keep the tail-lamp housing supported and away from moving parts.
• Switch on the hazard warning lights and verify that the new bulb flashes brightly.
• Turn on the parking lights and confirm that the same bulb illuminates at lower intensity.
• Switch everything off before continuing.
• If it does not work, use your gloved hand to remove the bulb, rotate it 180 degrees, reinstall it, and test again.

Step 6: Reinstall the Bulb Socket

• Use your gloved hand to align the socket tabs with the openings in the lamp housing.
• Insert the socket and rotate it clockwise approximately one-quarter turn until locked.
• Confirm that the socket seal sits evenly against the housing to prevent water entry.

Step 7: Reinstall the Tail-Lamp Housing

• Align the housing's locating pins with the body openings.
• Press the housing straight forward by hand until it sits flush with the body.
• Start both retaining bolts by hand to prevent cross-threading.
• Use the 8mm socket, 3-inch extension, and in-lb torque wrench to tighten both bolts to 5 Nm (44 in-lbs).
• Do not overtighten the bolts; excessive force can crack the plastic mounting tabs.

Step 8: Close the Tailgate

• Raise and latch the tailgate by hand.
• Check that the tailgate does not contact the lamp housing.

---

✅ After Repair

• ✅ Test the turn signal, hazard lights, brake light, and parking light functions.
• 👀 Compare the repaired side with the opposite lamp. Both should have similar brightness.
• 💧 Check that the bulb socket and tail-lamp housing remain secure and properly sealed.
• 🔧 No scan-tool reset, coding, or infotainment procedure is required.

---

💰 DIY vs Shop Cost

Shop Cost: ₹1,500-₹3,500 (parts + labor)

DIY Cost: ₹250-₹900 (parts only)

You Save: ₹600-₹3,250 by doing it yourself!

Local labor and imported-bulb prices vary. This repair takes a shop approximately 0.2-0.4 hours.

---
