🔧 Malibu - Rear Brake Pad Replacement

Replacing the rear brake pads requires retracting the electronic parking brake, removing both rear calipers, and installing a complete axle set of pads. Your Malibu uses electric parking-brake motors on the rear calipers, so they must be placed in service mode before the pistons are compressed.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

Assumption: This procedure is for the stock U.S.-market braking system.

---

⚠️ Safety & Precautions

• ⚠️ Use a bidirectional scan tool to retract the electronic parking brake before removing either caliper.
• ⚠️ Never apply 12 volts directly to the parking-brake motors; incorrect polarity can damage them.
• ⚠️ Support your Malibu with jack stands. Never work under a vehicle supported only by a jack.
• ⚠️ Do not press the brake pedal or operate the parking-brake switch while a caliper is removed.
• ⚠️ Do not let a caliper hang from its rubber brake hose.
• ⚠️ Brake dust may be harmful. Do not use compressed air to clean the brakes.
• ⚠️ Battery disconnection is not required. Stable battery voltage is required while using the scan tool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Bidirectional GM-compatible scan tool with EPB service function (specialty)
• 12-volt battery maintainer rated 5-10 amps
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated 30-150 ft-lbs
• 3/8-inch drive torque wrench rated 10-80 ft-lbs
• 3/8-inch drive ratchet
• 19mm deep socket
• 14mm socket
• 17mm open-end wrench
• Rear brake piston compression tool (specialty)
• Plastic trim tool
• Brake caliper hanger
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Small nylon cleaning brush
• Disposable shop towels
• Nitrile mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set with wear indicators - Qty: 1 axle set
• Rear brake pad hardware kit - Qty: 1 axle set
• Rear caliper guide-pin boots - Qty: 1 kit if damaged
• High-temperature ceramic brake lubricant - Qty: 1 packet
• Non-chlorinated brake cleaner - Qty: 1 can
• DOT 3 brake fluid - Qty: 1 small sealed bottle if adjustment is needed

Replace in pairs: Install pads on both rear wheels, even if only one side appears worn.

---

📋 Before You Begin

• 📍 Park on level, solid ground. Shift into Park, switch off the engine, and chock both front wheels.
• 🔋 Connect the 12-volt battery maintainer according to its instructions. Do not use a charger’s high-output boost mode.
• 🧰 Confirm that the scan tool offers a GM electronic parking brake service or pad-replacement function.
• 🛑 Release the electronic parking brake before lifting the vehicle.
• 🔍 Check the brake-fluid reservoir. If it is at the maximum line, remove a small amount with a clean fluid extractor so it will not overflow when the pistons are compressed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Enter Electronic Parking Brake Service Mode

• Connect the bidirectional GM-compatible scan tool to the diagnostic connector under the driver-side dashboard.
• Switch the ignition on without starting the engine.
• Use the scan tool and select Chevrolet > Malibu > Chassis > Electronic Parking Brake > Brake Pad Replacement Mode > Retract. Menu wording can vary by scan-tool brand.
• Wait until both rear parking-brake motors stop and the scan tool confirms that service mode is active.
• Switch the ignition off, but leave the electronic parking brake released.

Step 2: Loosen the Rear Wheel Nuts

• Use the 19mm deep socket and 1/2-inch drive breaker bar to loosen each rear wheel nut about one-half turn.
• Do not remove the wheel nuts while your Malibu is still on the ground.

Step 3: Raise and Support the Rear

• Place the floor jack under the approved rear-center lifting point, then raise the rear of your Malibu.
• Place the jack stands beneath the reinforced rear side lifting points.
• Lower the vehicle carefully onto the stands and gently check that it is stable.
• Keep the floor jack lightly touching the lifting point as secondary support.

Step 4: Remove Both Rear Wheels

• Use the 19mm deep socket and 3/8-inch drive ratchet to remove the wheel nuts.
• Remove both rear wheels and slide them flat beneath the rocker-panel area as an extra precaution.

Step 5: Inspect the Rear Brakes

• Use the safety glasses, gloves, non-chlorinated brake cleaner, nylon cleaning brush, and shop towels to clean loose debris.
• Inspect the rotor surfaces for deep grooves, heat cracks, heavy rust, or a pronounced outer lip.
• Compare the inner and outer pads. A large wear difference may indicate seized guide pins or a sticking caliper.
• Inspect the caliper boots and parking-brake motor area for tears, fluid, or impact damage.

Step 6: Remove the First Rear Caliper

• Use the 14mm socket and 3/8-inch drive ratchet to remove the upper and lower caliper guide-pin bolts.
• If a guide pin rotates, hold its flat section with the 17mm open-end wrench while loosening the bolt with the 14mm socket.
• Lift the caliper away from the pads and support it with the brake caliper hanger.
• Do not pull, twist, or sharply bend the brake hose or parking-brake wiring.

Step 7: Remove the Old Pads and Hardware

• Remove the inner and outer pads by hand.
• Use the plastic trim tool to lift the stainless-steel abutment clips from the caliper bracket. Abutment clips are the small metal tracks on which the pads slide.
• Note the position of the wear indicator before discarding the old pads.

Step 8: Check and Lubricate the Guide Pins

• Pull each guide pin from its boot by hand and wipe it clean with shop towels.
• Inspect for rust, pitting, binding, or torn rubber boots.
• Apply a thin film of high-temperature ceramic brake lubricant to the smooth guide-pin surfaces only.
• Reinstall each pin in its original position and confirm that it slides freely.
• Do not apply lubricant to the bolt threads, rotor, or pad friction material.

Step 9: Compress the Caliper Piston

• Confirm again that the scan tool successfully placed the electronic parking brake in service mode.

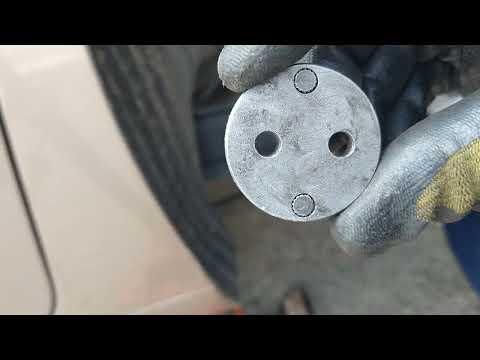

• Position the old inner pad against the piston, then use the rear brake piston compression tool to press the piston slowly and straight into the caliper.
• Watch the brake-fluid reservoir while compressing the piston. Stop immediately if fluid approaches the top.
• Do not force or manually power the electric parking-brake motor.
• Compress slowly to protect the piston seal.

Step 10: Install the New Hardware and Pads

• Press the new brake pad hardware clips fully into the caliper bracket by hand.
• Apply a very thin layer of high-temperature ceramic brake lubricant where the pad ears contact the hardware.
• Install the inner and outer pads in the same orientation as the originals.
• Keep all lubricant off the pad friction surfaces and rotor faces.

Step 11: Reinstall the Caliper

• Swing the caliper over the new pads without twisting the brake hose.
• Start both guide-pin bolts by hand to prevent cross-threading.
• Hold the guide pins with the 17mm open-end wrench if necessary.
• Use the 14mm socket and 3/8-inch drive torque wrench to tighten both guide-pin bolts to 28 Nm (21 ft-lbs).

Step 12: Repeat on the Opposite Side

• Repeat Steps 5 through 11 on the other rear wheel using the same listed tools.
• Compare both sides for matching pad placement, hardware position, and hose routing.

Step 13: Reinstall the Rear Wheels

• Install each wheel and start all wheel nuts by hand.
• Use the 19mm deep socket and 3/8-inch drive ratchet to snug the nuts in a star pattern.
• Use the floor jack to raise your Malibu slightly, remove the jack stands, and lower the vehicle fully.
• Use the 19mm deep socket and 1/2-inch drive torque wrench to tighten the wheel nuts in a star pattern to 140 Nm (100 ft-lbs).

Step 14: Exit Electronic Parking Brake Service Mode

• Switch the ignition on without starting the engine.
• Use the scan tool and select Chevrolet > Malibu > Chassis > Electronic Parking Brake > Brake Pad Replacement Mode > Apply or Exit.
• Wait while both parking-brake motors calibrate and the scan tool confirms completion.
• Read and clear electronic parking-brake fault codes only after correcting any reported problem.

Step 15: Seat the Pads Against the Rotors

• With your Malibu stationary, press and release the brake pedal slowly several times until it feels firm.
• Check the brake-fluid reservoir and adjust to the correct line with fresh DOT 3 brake fluid if needed.
• Use the electronic parking-brake switch to apply and release the parking brake twice.
• Do not drive if the pedal remains soft or sinks toward the floor.

---

✅ After Repair

• ✅ Start the engine and confirm that the red brake and electronic parking-brake warning indicators turn off normally.
• ✅ Hold the brake pedal and shift between Park and Drive while stationary to confirm a firm pedal.
• ✅ Test the electronic parking brake on level ground before testing it on an incline.
• ✅ Perform a slow test drive in a traffic-free area. Check for pulling, grinding, scraping, or warning messages.
• ✅ Bed in the pads with 6-8 smooth stops from approximately 50 km/h to 10 km/h. Allow about 30 seconds of driving between stops and avoid activating ABS.
• ✅ Avoid hard stops and holding the hot brakes at a standstill for the first 300 km unless required for safety.
• ✅ Recheck the brake-fluid level and inspect for leaks after the test drive.
• ✅ Recheck wheel-nut torque to 140 Nm (100 ft-lbs) after approximately 80-160 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹3,500-₹9,000 (parts only, excluding tools)

You Save: ₹4,500-₹9,000 by doing it yourself!

Sonīpat-area labor and imported U.S.-spec part prices vary. This repair takes a shop approximately 1-1.5 hours.

---
