🔧 CR-V - Front Strut Replacement

This procedure replaces both front strut assemblies on your CR-V. The rear suspension uses separate shock absorbers and springs, so these instructions apply only to the front.

Assumption: Complete preassembled struts are being installed. This is safer for a beginner because no spring compressor is required.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Replace front struts in pairs to keep handling and braking balanced.
• ⚠️ Support your CR-V with jack stands. Never work beneath a vehicle supported only by a jack.
• ⚠️ Do not loosen the center nut on top of the strut. It holds the compressed coil spring.
• ⚠️ Do not allow the steering knuckle to hang from the brake hose or wheel-speed sensor wire.
• ⚠️ Keep fingers away from the gap between the strut and steering knuckle.
• ⚠️ A professional four-wheel alignment is required after replacement.
• 🔋 Battery disconnection is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3-ton floor jack
• 3-ton jack stands
• Wheel chocks
• 1/2-inch-drive breaker bar
• 1/2-inch-drive torque wrench rated 20-200 Nm
• 3/8-inch-drive ratchet
• 12mm socket
• 14mm deep socket
• 17mm socket
• 19mm socket
• 17mm combination wrench
• 19mm combination wrench
• 6mm hex-bit socket
• Flat-blade screwdriver
• Trim-clip removal tool
• Rubber mallet
• Medium pry bar
• Penetrating oil
• Mechanic’s wire
• Paint marker
• Nitrile mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front left complete strut assembly - Qty: 1
• Front right complete strut assembly - Qty: 1
• Front strut-to-steering-knuckle bolts - Qty: 4
• Front strut-to-steering-knuckle self-locking nuts - Qty: 4
• Front stabilizer-link self-locking nuts - Qty: 2
• Front upper strut-mount self-locking nuts - Qty: 6

Replace in pairs: Install both front strut assemblies during the same repair.

---

📋 Before You Begin

• Park your CR-V on firm, level ground. Select Park and apply the parking brake.
• Place wheel chocks securely behind both rear tires.
• Verify that the replacement assemblies are labeled left and right. The brackets must face the same directions as the original struts.
• Open the hood and locate the three small mounting nuts around the top of each strut tower.
• Do not loosen the large center nut in the middle of either strut mount.
• No infotainment setting, scan-tool command, or suspension service mode is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel nuts

• Use the 19mm socket and breaker bar to loosen each front wheel nut about one-half turn.
• Do not remove the wheel nuts while your CR-V is still on the ground.

Step 2: Raise and support the front

• Use the 3-ton floor jack under the reinforced front-center jacking point to raise your CR-V.
• Position the 3-ton jack stands beneath the left and right front support points.
• Lower your CR-V onto the stands, then gently push the body to confirm it is stable.
• Keep the floor jack lightly positioned beneath the front-center point as an additional safeguard.

Step 3: Remove both front wheels

• Use the 19mm socket and ratchet to remove the wheel nuts.
• Remove both front wheels and slide them beneath the side rails as an additional safety measure.

Step 4: Record the strut position

• Use the paint marker to draw alignment marks across the strut and steering knuckle.
• These marks provide a rough installation reference but do not replace a wheel alignment.
• Spray penetrating oil on the stabilizer-link nut and both lower strut nuts. Allow several minutes for it to work.

Step 5: Release the hose and sensor brackets

• Use the 12mm socket and ratchet to remove the brake-hose bracket bolt from the strut.
• Use the trim-clip removal tool or flat-blade screwdriver to release the wheel-speed sensor wire clip.
• Move both items aside without pulling, twisting, or sharply bending them.

Step 6: Disconnect the stabilizer link

• The stabilizer link is the short jointed rod connecting the strut to the anti-roll bar.
• Use the 17mm socket and ratchet to remove its nut from the strut bracket.
• If the stud rotates, hold its center with the 6mm hex-bit socket while turning the nut with the 17mm combination wrench.
• Move the link out of the strut bracket without forcing its rubber boots.

Step 7: Support the steering knuckle

• Place the 3-ton floor jack beneath the steering knuckle and raise it just enough to support its weight.
• Use mechanic’s wire to loosely support the knuckle from a sturdy suspension point.
• Do not loop the wire around the brake hose, sensor wire, or CV axle boot.

Step 8: Remove the lower strut fasteners

• Use the 19mm combination wrench to hold each bolt head.
• Use the 19mm socket and breaker bar to remove both lower self-locking nuts.
• Support the knuckle, then slide the two bolts out. Use the rubber mallet for light taps if necessary.
• Use the medium pry bar only at the solid strut-to-knuckle joint if gentle separation is needed.
• Do not pull the knuckle outward far enough to separate the inner CV joint.

Step 9: Remove the upper mounting nuts

• Hold the strut securely with one hand from inside the wheel opening.
• Use the 14mm deep socket and ratchet to remove the three small upper mounting nuts.
• Do not remove or turn the large center nut.
• Lower the complete strut assembly carefully through the wheel opening.

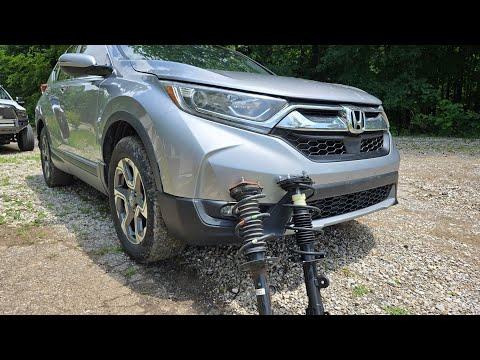

Step 10: Compare the replacement strut

• Place the old and new assemblies side by side on the ground.
• Confirm the upper studs, lower bolt holes, spring orientation, brake-hose bracket, and stabilizer-link bracket match.
• Use the paint marker to identify the old strut so it cannot be reinstalled accidentally.

Step 11: Install the complete strut assembly

• Guide the new assembly into the strut tower without damaging its upper studs.
• Install the three new upper nuts by hand with no tools until each nut turns several full rotations.
• Use the 14mm deep socket and torque wrench to tighten the upper mounting nuts evenly to Torque to 44 Nm (33 ft-lbs).
• Do not apply torque to the center shaft nut.

Step 12: Connect the strut to the steering knuckle

• Use the 3-ton floor jack to align the steering knuckle with the lower strut bracket.
• Install the new lower bolts through the strut and knuckle, matching the original orientation.
• Thread the new self-locking nuts by hand.
• Use the 19mm combination wrench to hold each bolt and the 19mm socket with torque wrench to tighten each nut to Torque to 116 Nm (86 ft-lbs).

Step 13: Reconnect the stabilizer link

• Insert the stabilizer-link stud through the strut bracket and install a new self-locking nut by hand.
• Use the 17mm socket and torque wrench to tighten the nut to Torque to 79 Nm (58 ft-lbs).
• If the stud turns before final tightening, hold it with the 6mm hex-bit socket and use the 17mm combination wrench.

Step 14: Reattach the hose and sensor wire

• Position the brake-hose bracket exactly as it was on the original strut.
• Use the 12mm socket and torque wrench to tighten its bolt to Torque to 22 Nm (16 ft-lbs).
• Use your fingers to press the wheel-speed sensor wire clip fully into its mounting hole.
• Turn the steering knuckle from side to side by hand and verify neither line becomes tight or rubs the tire area.

Step 15: Repeat on the opposite side

• Repeat Steps 4 through 14 using the same listed tools.
• Install the correctly labeled strut assembly for that side.
• Finish one side before disassembling the other.

Step 16: Install the front wheels

• Install each wheel and start all wheel nuts by hand.
• Use the 19mm socket and ratchet to snug the nuts in a crisscross pattern.
• Remove the wheels stored beneath the vehicle.

Step 17: Lower the vehicle and torque the wheels

• Use the 3-ton floor jack to raise your CR-V slightly, then remove both jack stands.
• Lower the vehicle until the tires are fully on the ground.
• Use the 19mm socket and torque wrench to tighten the wheel nuts in a crisscross pattern to Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• ✅ Start your CR-V and slowly turn the steering wheel fully left and right. Listen for binding, popping, or spring movement.
• ✅ Inspect both brake hoses and wheel-speed sensor wires with the steering turned in both directions.
• ✅ Drive slowly in a safe area. Confirm the steering returns normally and no warning lights appear.
• ✅ Arrange a professional four-wheel alignment before normal or highway driving.
• ✅ After 40-80 km, use the 19mm socket and torque wrench to recheck the wheel nuts at 108 Nm (80 ft-lbs).
• ⚠️ Stop driving if your CR-V pulls sharply, clunks, has unstable steering, or displays ABS or stability-control warnings.

---

💰 DIY vs Shop Cost

Shop Cost: ₹45,000-₹75,000 including parts, labor, and alignment

DIY Cost: ₹24,000-₹45,000 for parts and alignment

You Save: ₹15,000-₹30,000 by doing it yourself!

Local labor and imported-part prices vary. This repair takes a shop approximately 2.5-4 hours.

---
