🔧 Pathfinder - Front Strut Replacement

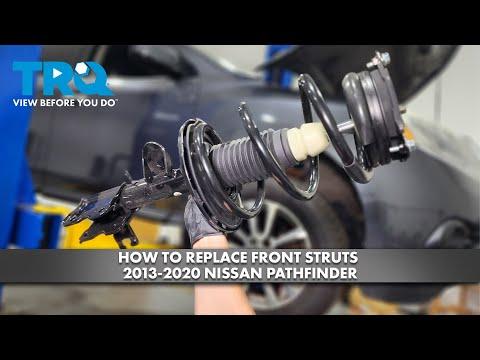

This procedure replaces both front struts as complete, preassembled units. Complete strut assemblies are safest for a beginner because they eliminate the need to compress the powerful coil springs.

Assumption: You are replacing both front struts with complete assemblies.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Replace front struts in pairs so handling and braking remain balanced.
• ⚠️ Support your Pathfinder with jack stands. Never work beneath a vehicle supported only by a floor jack.
• ⚠️ Do not loosen the large center nut on top of the strut. It retains a highly compressed coil spring.
• ⚠️ If using bare replacement struts, spring transfer requires a professional wall-mounted spring compressor. Portable compressors can slip and cause severe injury.
• ⚠️ Support the steering knuckle after disconnecting the strut. Letting it hang can damage the brake hose, ABS wiring, or CV axle.
• ⚠️ A professional four-wheel alignment is required after replacement.
• Battery disconnection is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic’s gloves
• Wheel chocks
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• 21mm impact socket
• 12mm socket
• 13mm socket
• 14mm socket
• 18mm socket
• 19mm socket
• 21mm socket
• 22mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated 20-200 Nm
• 18mm combination wrench
• 21mm combination wrench
• 6mm hex-bit socket
• 12-inch adjustable wrench
• 12-inch pry bar
• 16-ounce dead-blow hammer
• Medium flat-blade screwdriver
• Trim-clip removal tool
• Paint marker
• Penetrating oil aerosol
• Mechanic’s wire rated 45kg minimum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Complete front strut assemblies - Replace in pairs - Qty: 2
• Front strut-to-steering-knuckle lock nuts - Qty: 4
• Front stabilizer-link lock nuts - Qty: 2
• Front strut upper-mount lock nuts - Qty: 6

---

📋 Before You Begin

• Park your Pathfinder on firm, level pavement. Select Park, apply the parking brake, turn off the engine, and chock both rear wheels.
• Compare each complete replacement assembly with the corresponding original. Confirm that the left and right brackets, spring orientation, and upper mounts match.
• Apply penetrating oil to the lower strut fasteners and stabilizer-link nuts. Allow it to soak for several minutes.
• No infotainment service mode, scan-tool command, or battery registration is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Nuts

• Place the wheel chocks firmly behind both rear tires.
• Use a 21mm impact socket and 1/2-inch breaker bar to loosen each front wheel nut about one-half turn. Do not remove them yet.

Step 2: Raise and Support the Vehicle

• Use the 2-ton floor jack beneath the specified front-center lifting point to raise your Pathfinder.
• Position the 2-ton jack stands under the reinforced side support points, then lower the vehicle gently onto them.
• Keep the floor jack lightly contacting the lifting point as a backup without carrying the vehicle’s weight.
• Use the 21mm impact socket and breaker bar to remove the wheel nuts and both front wheels.

Step 3: Record the Strut Position

• Use the paint marker to draw alignment marks across each strut-to-steering-knuckle connection. These marks help preserve the approximate camber position until alignment.
• Use the floor jack beneath the steering knuckle with light pressure. The knuckle is the heavy metal part holding the wheel hub.

Step 4: Release the Brake Hose and ABS Wire

• Use the 12mm socket and 3/8-inch ratchet to remove the brake-hose bracket bolt from the strut.
• Use the trim-clip removal tool or medium flat-blade screwdriver to release the ABS sensor-wire clips without pulling on the wire.
• Secure the hose and wire safely aside with mechanic’s wire.
• During assembly, tighten the brake-hose bracket bolt to 10.8 Nm (8 ft-lbs).

Step 5: Disconnect the Stabilizer Link

• Use the 18mm socket and 3/8-inch ratchet to remove the stabilizer-link nut from the strut bracket.
• If the stud spins, hold its center with the 6mm hex-bit socket while turning the nut with the 18mm combination wrench.
• Move the link out of the strut bracket. Use the 12-inch pry bar only for gentle positioning.
• During assembly, install a new lock nut and tighten it to 84 Nm (62 ft-lbs).

Step 6: Disconnect the Strut from the Steering Knuckle

• Use the 21mm or 22mm socket, matching 21mm combination wrench, and breaker bar to loosen the two lower strut fasteners.
• Use the dead-blow hammer to tap the bolts out while the floor jack supports the knuckle.
• Use the mechanic’s wire to support the knuckle. Do not let it pull on the brake hose, ABS wire, or CV axle.
• Use the 12-inch pry bar gently to separate the knuckle from the strut bracket.
• During assembly, install new lock nuts and tighten both strut-to-knuckle fasteners to 177 Nm (131 ft-lbs).

Step 7: Remove the Upper Strut Mount Nuts

• Open the hood and locate the three small upper-mount nuts above the strut tower.
• Use the 13mm or 14mm socket and 3/8-inch ratchet to remove two nuts completely.
• Support the strut with one gloved hand, then use the same socket and ratchet to remove the final nut.
• Guide the complete strut assembly downward and out through the wheel opening.
• Do not loosen the large center nut.

Step 8: Install the Complete Strut Assembly

• Confirm the assembly is fitted to the correct side by comparing its hose, ABS-wire, and stabilizer-link brackets with the removed unit.
• Guide the assembly into the strut tower by hand and start all three new upper nuts several turns.
• Use the 13mm or 14mm socket and torque wrench to tighten the upper-mount nuts evenly to 44 Nm (32 ft-lbs).
• Start every nut by hand to prevent cross-threading.

Step 9: Reconnect the Steering Knuckle

• Use the floor jack to align the knuckle with the lower strut bracket.
• Insert the two bolts in their original direction and align the paint marks as closely as possible.
• Use the 21mm or 22mm socket, matching 21mm combination wrench, and torque wrench to tighten new lock nuts to 177 Nm (131 ft-lbs).
• Remove the mechanic’s wire after confirming the knuckle is fully supported by the strut.

Step 10: Reconnect the Link, Hose, and ABS Wire

• Use the 18mm socket and torque wrench to tighten the new stabilizer-link lock nut to 84 Nm (62 ft-lbs). Hold the stud with the 6mm hex-bit socket if it spins.
• Use the 12mm socket and torque wrench to tighten the brake-hose bracket bolt to 10.8 Nm (8 ft-lbs).
• Use the trim-clip removal tool to guide each ABS-wire clip securely into its original bracket.
• Check by hand that the hose and wire are not twisted, stretched, or able to rub the tire.

Step 11: Replace the Opposite Strut

• Use the same listed tools and repeat Steps 3 through 10 on the other side.
• Do not remove both strut assemblies simultaneously. Keeping one side assembled provides a useful routing reference.

Step 12: Reinstall the Wheels

• Install both wheels and start every wheel nut by hand.
• Use the 21mm impact socket and ratchet to snug the nuts in a star pattern. Do not apply final torque while raised.
• Use the floor jack to raise your Pathfinder, remove the jack stands, and lower it completely.
• Use the 21mm impact socket and torque wrench to tighten the wheel nuts in a star pattern to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Turn the steering wheel slowly from lock to lock while parked. Listen for binding, popping, or rubbing.
• Press the brake pedal several times and verify it feels normal before moving your Pathfinder.
• Take a slow test drive. Stop immediately if the steering pulls severely, a warning light appears, or you hear heavy knocking.
• Arrange a professional four-wheel alignment as soon as possible. Strut removal changes the front camber and toe relationship.
• After 40-80 km, use the 21mm impact socket and torque wrench to recheck the wheel nuts at 113 Nm (83 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,500 (parts + labor and alignment)

DIY Cost: $350-$750 (parts and alignment)

You Save: $500-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4 hours.

---
