🔧 Escape - Front Lower Control Arm Replacement

This repair replaces the front lower control arms on your Escape. The control arm connects the front wheel hub area to the vehicle frame, and its bushings and ball joint help keep the wheel stable while driving.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never rely on a jack alone.
• ⚠️ Use jack stands before putting any part of your body under the vehicle.
• ⚠️ The lower ball joint is a tapered press-fit connection. It may pop loose suddenly when released.
• ⚠️ Replace control arms in pairs if both sides show wear, clunks, torn bushings, or uneven tire wear.
• ⚠️ A wheel alignment is required after this repair to prevent tire wear and steering pull.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 3/8-inch drive ratchet
• Torque wrench (10-150 ft-lbs)
• 19mm socket
• 21mm socket
• 18mm socket
• 15mm socket
• 18mm wrench
• 21mm wrench
• Flat pry bar
• Ball joint separator (specialty)
• Rubber mallet
• Needle-nose pliers
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly - Qty: 1 per side
• Front lower control arm assemblies - Replace in pairs - Qty: 2
• Lower ball joint pinch bolt and nut - Qty: 1 per side
• Control arm mounting bolts - Qty: 2 per side
• Wheel alignment service - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Escape on level ground and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔩 Loosen the front wheel lug nuts slightly before lifting the vehicle.
• 🧰 Spray penetrating oil on the lower ball joint pinch bolt and both control arm mounting bolts.
• 📝 A ball joint separator is a tool that safely separates the ball joint from the steering knuckle without hammering directly on suspension parts.
• 📝 A torque wrench is a tool that tightens bolts to an exact tightness so parts are secure without being over-tightened.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 19mm socket and 1/2-inch drive breaker bar to loosen the lug nuts on the side you are repairing.
• Turn each lug nut about half a turn only. Do not remove them yet.
• Break lug nuts loose on the ground.

Step 2: Raise and Support the Vehicle

• Use a floor jack at the front jacking point to lift the front of your Escape.
• Place jack stands under the proper front support points.
• Slowly lower the vehicle onto the jack stands.
• Gently shake the vehicle by hand to make sure it is stable before continuing.

Step 3: Remove the Front Wheel

• Use a 19mm socket and 1/2-inch drive ratchet to remove the lug nuts.
• Remove the front wheel and place it flat under the side of the vehicle as an extra safety backup.

Step 4: Mark the Control Arm Position

• Use a paint marker to mark around the control arm mounting points where they meet the subframe.
• This helps you place the new arm close to the old position before alignment.
• This does not replace an alignment.

Step 5: Remove the Lower Ball Joint Pinch Bolt

• Find the lower ball joint where the control arm connects to the steering knuckle behind the brake rotor.
• Use a 15mm socket and 3/8-inch drive ratchet to remove the lower ball joint pinch bolt.
• If the nut spins, hold it with the correct wrench while turning the bolt with the 15mm socket.
• Discard the old pinch bolt and nut if your replacement hardware includes new ones.

Step 6: Separate the Ball Joint from the Knuckle

• Use a ball joint separator to separate the lower ball joint stud from the steering knuckle.
• Use a flat pry bar carefully between the control arm and knuckle if extra downward pressure is needed.
• Use a rubber mallet to tap the control arm only if it is stuck.
• Do not strike the brake rotor, axle shaft, or aluminum steering knuckle directly with a steel hammer.

Step 7: Support the Control Arm

• Use one hand to support the control arm while removing the mounting bolts.
• The arm is not extremely heavy, but it can drop suddenly when the bolts are removed.

Step 8: Remove the Rear Control Arm Mounting Bolt

• Use an 18mm socket with a 1/2-inch drive ratchet to remove the rear control arm mounting bolt.
• If needed, hold the opposite side with an 18mm wrench.
• Set the bolt aside only if it will be reused. Replace it if new hardware is supplied.

Step 9: Remove the Front Control Arm Mounting Bolt

• Use a 21mm socket with a 1/2-inch drive ratchet to remove the front control arm mounting bolt.
• If needed, hold the opposite side with a 21mm wrench.
• Remove the control arm from the vehicle.
• Note the arm angle before removal.

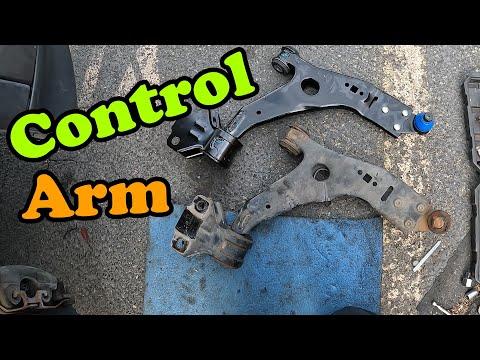

Step 10: Compare the Old and New Control Arms

• Place the old and new control arms side by side on the ground.
• Make sure the bushing locations, ball joint position, and mounting holes match.
• Use needle-nose pliers only if you need to remove a shipping clip or protective cap from the new arm.

Step 11: Install the New Control Arm

• Position the new control arm into the subframe.
• Install the front mounting bolt by hand first.
• Install the rear mounting bolt by hand next.
• Use an 18mm socket and 21mm socket only to snug the bolts at this stage.
• Do not fully tighten the bushing bolts while the suspension is hanging.

Step 12: Reconnect the Ball Joint

• Guide the lower ball joint stud into the steering knuckle by hand.
• Use a flat pry bar carefully if you need to move the control arm slightly downward.
• Install the new lower ball joint pinch bolt and nut.
• Use a 15mm socket and torque wrench to tighten the pinch bolt to Torque to 63 Nm (46 ft-lbs).

Step 13: Load the Suspension Before Final Tightening

• Use a floor jack under the outer end of the control arm to raise it until the vehicle just starts to lift slightly off the jack stand.
• This puts the suspension near normal ride height.
• This step protects the new rubber bushings from being twisted at rest.

Step 14: Final-Torque the Control Arm Bolts

• Use an 18mm socket and torque wrench on the rear control arm mounting bolt.
• Tighten the rear mounting bolt to Torque to 175 Nm (129 ft-lbs).
• Use a 21mm socket and torque wrench on the front control arm mounting bolt.
• Tighten the front mounting bolt to Torque to 175 Nm (129 ft-lbs).
• If the bolt turns the nut, hold the nut with an 18mm wrench or 21mm wrench as needed.

Step 15: Reinstall the Wheel

• Remove the floor jack from under the control arm.
• Install the wheel by hand.
• Use a 19mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 16: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Escape to the ground.
• Use a 19mm socket and torque wrench to tighten the lug nuts in a star pattern to Torque to 135 Nm (100 ft-lbs).

Step 17: Repeat on the Other Side if Replacing Both

• Use the same tools and steps for the other front control arm.
• Replacing both sides together gives the most even steering feel and suspension response.

---

✅ After Repair

• ✅ Check that all bolts are fully seated and torqued.
• ✅ Turn the steering wheel left and right while parked. Listen for binding, popping, or rubbing.
• ✅ Take a slow test drive first. Avoid highway speeds until everything feels normal.
• ✅ Schedule a front wheel alignment as soon as possible after replacing the control arm.
• ✅ Recheck the lug nut torque after 25-50 miles using a 19mm socket and torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 for both front lower control arms, parts + labor + alignment

DIY Cost: $180-$420 for parts only, plus alignment

You Save: $350-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours plus alignment time.

---
