🔧 Tucson - Front Brake Pad Replacement

This repair replaces the front brake pads on your Tucson. Front pads wear faster than rear pads because they do most of the stopping, so replacing them restores braking performance and helps prevent rotor damage.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and never rely on a jack alone.
• ⚠️ Use jack stands before putting your hands near the brakes.
• ⚠️ Brake dust can be harmful; use brake cleaner, not compressed air.
• ⚠️ The brake pedal must not be pressed while a caliper is removed.
• ⚠️ Brake fluid can damage paint; wipe spills immediately.
• ⚠️ No battery disconnect is required for this front brake pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• 14mm socket
• 17mm open-end wrench
• Ratchet 3/8-inch drive
• Flat-blade screwdriver
• C-clamp 6-inch
• Brake caliper piston compression tool (specialty)
• Brake parts cleaning brush
• Catch pan
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake cleaner - Qty: 1 can
• High-temperature brake lubricant - Qty: 1 tube

---

📋 Before You Begin

• 🅿️ Park your Tucson on level ground and shift to Park.
• 🧱 Place wheel chocks behind the rear wheels.
• 🧤 Put on safety glasses and nitrile gloves.
• 🛑 Do not set the parking brake if you are only doing the front pads; it is not needed.
• 📌 A caliper is the clamp-shaped brake part that squeezes the pads against the rotor.
• 📌 A rotor is the round metal disc behind the wheel.
• 📌 A torque wrench tightens bolts to the correct tightness so they are not loose or over-tightened.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use the 21mm lug nut socket and breaker bar 1/2-inch drive to loosen each front wheel lug nut about 1/2 turn.
• Do not remove the lug nuts yet.
• Loosen before lifting the vehicle.

Step 2: Lift and Support the Front

• Use the floor jack to lift the front of your Tucson at the front center subframe lift point.
• Place jack stands under the reinforced front side pinch welds or front subframe support points.
• Slowly lower the vehicle onto the jack stands.
• Gently shake the vehicle by hand to confirm it is stable.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and ratchet 3/8-inch drive to remove the loosened lug nuts.
• Remove both front wheels and place them flat under the vehicle as an extra safety backup.

Step 4: Inspect the Brake Assembly

• Use the safety glasses and look at the pads, rotor surface, caliper, and rubber brake hose.
• If the rotor has deep grooves, heavy rust flakes, or a strong vibration was felt while braking, the rotors should be replaced or resurfaced.
• Check that the brake hose is not cracked, leaking, or twisted.

Step 5: Remove the Lower Caliper Slide Bolt

• Use the 17mm open-end wrench to hold the caliper slide pin steady.
• Use the 14mm socket and ratchet 3/8-inch drive to remove the lower caliper slide bolt.
• A slide pin is a smooth pin that lets the caliper move evenly as the brakes apply.

Step 6: Swing the Caliper Up

• Use the flat-blade screwdriver gently between the caliper and pad if the caliper is tight.
• Swing the caliper upward like a hinge.
• Do not let the caliper hang by the rubber brake hose.
• If needed, rest the caliper carefully on the bracket.

Step 7: Remove the Old Brake Pads

• Use your hands to slide the inner and outer brake pads out of the caliper bracket.
• If they are stuck, use the flat-blade screwdriver to gently pry them out.
• Remove the old metal pad clips from the caliper bracket by hand or with the flat-blade screwdriver.

Step 8: Clean the Caliper Bracket

• Place the catch pan under the brake area.
• Spray the pad contact areas with brake cleaner.
• Use the brake parts cleaning brush to clean rust and dirt from the bracket where the pad clips sit.
• Let the cleaned areas dry before installing new hardware.

Step 9: Install New Pad Hardware

• Use your hands to press the new front brake pad hardware kit clips into the caliper bracket.
• Make sure each clip sits fully flat and does not pop loose.
• Apply a thin film of high-temperature brake lubricant to the pad contact points on the clips.
• Do not get lubricant on the rotor or pad friction material.

Step 10: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use the C-clamp 6-inch or brake caliper piston compression tool to slowly push the piston fully back into the caliper.
• The piston is the round metal piece inside the caliper that pushes the brake pad.
• Go slowly so brake fluid can return to the master cylinder without overflowing.
• If fluid rises near the top of the reservoir, remove a small amount using an appropriate fluid-safe method before it spills.

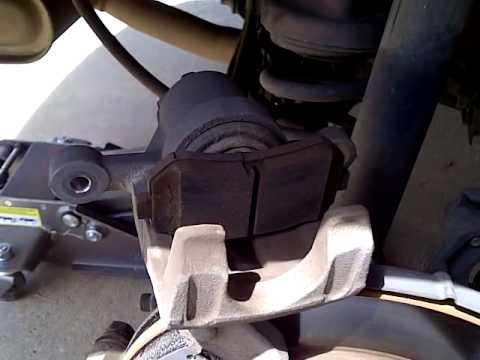

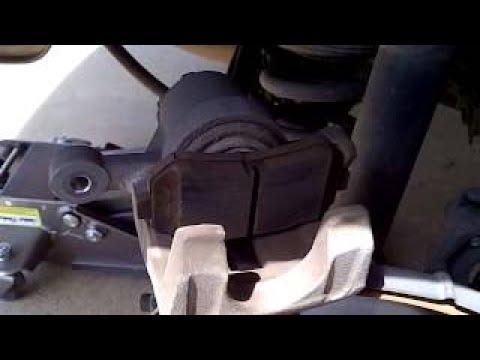

Step 11: Install the New Brake Pads

• Use your hands to install the new inner and outer pads into the caliper bracket.
• Make sure the friction material faces the rotor.
• The pad with the wear indicator, if included, typically goes on the inner side.
• Slide each pad back and forth slightly to confirm it moves freely in the clips.

Step 12: Lower the Caliper and Install the Bolt

• Swing the caliper down over the new pads by hand.
• If it will not fit, use the C-clamp 6-inch or brake caliper piston compression tool to compress the piston a little more.
• Install the lower caliper slide bolt by hand first to avoid cross-threading.
• Use the 17mm open-end wrench to hold the slide pin.
• Use the 14mm socket and torque wrench 1/2-inch drive to tighten the caliper slide bolt to Torque to 27 Nm (20 ft-lbs).

Step 13: Repeat on the Other Front Side

• Use the same tools and repeat Steps 5 through 12 on the other front brake.
• Always replace front brake pads in pairs, left and right together.

Step 14: Reinstall the Front Wheels

• Place each front wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket and ratchet 3/8-inch drive to snug the lug nuts in a star pattern.

Step 15: Lower the Vehicle and Torque the Wheels

• Use the floor jack to lift the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Tucson fully to the ground.
• Use the 21mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern to Torque to 88-107 Nm (65-79 ft-lbs).

Step 16: Pump the Brake Pedal

• Before moving the vehicle, press the brake pedal several times until it feels firm.
• This moves the caliper pistons back into position against the new pads.
• If the pedal stays soft or sinks, do not drive the vehicle.

---

✅ After Repair

• ✅ Check the brake fluid level and make sure it is between MIN and MAX.
• ✅ Start the engine and press the brake pedal again until it feels firm.
• ✅ Test drive slowly in a safe area first.
• ✅ Listen for scraping, grinding, or clunking noises.
• ✅ Bed in the new pads with 8-10 gentle stops from about 30 mph, allowing short cooling time between stops.
• ✅ Avoid hard braking for the first 100-200 miles unless needed for safety.
• ✅ Recheck lug nut torque after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $175-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
