🔧 F-150 - Front Brake Pad Replacement

This repair replaces the front brake pads on your F-150. The front pads do most of the stopping work, so replacing them when worn helps restore braking performance and prevents rotor damage.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a flat, solid surface only. Never rely on a jack alone.
• 🧤 Wear safety glasses and gloves. Brake dust can irritate skin and eyes.
• 🔥 Let the brakes cool fully before starting. Rotors and calipers can stay hot after driving.
• ⚠️ Use jack stands under the frame before removing a wheel.
• 🚫 Do not press the brake pedal while the caliper is removed.
• 🔋 Battery disconnect is not required for front brake pad replacement on your F-150.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 13mm socket
• 18mm wrench
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 1/2-inch torque wrench
• Brake caliper piston compressor tool (specialty)
• Flathead screwdriver
• Wire brush
• Bungee cord
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake lubricant - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🚗 Park your F-150 on level ground and shift into Park.
• 🧱 Place wheel chocks behind the rear wheels.
• 🅿️ Set the parking brake before lifting the truck.
• 🧴 Open the hood and locate the brake fluid reservoir. If it is completely full, remove a small amount with a clean suction tool before compressing the caliper pistons.
• 📌 A caliper is the clamp that squeezes the brake pads against the rotor to stop the wheel.
• 📌 A rotor is the round metal disc behind the wheel that the brake pads press against.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 21mm lug nut socket and 1/2-inch breaker bar to loosen the front lug nuts about one turn while the tires are still on the ground.
• Do not remove the lug nuts yet.
• Loosen before lifting.

Step 2: Lift and Support the Front of the Truck

• Use a floor jack rated 3-ton minimum to lift the front of your F-150 at a solid front frame or crossmember lift point.
• Place jack stands rated 3-ton minimum under the frame rails.
• Slowly lower the truck onto the jack stands.
• Gently shake the truck by hand to make sure it is stable before working near the wheels.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 3/8-inch ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Look at the caliper, rotor, brake hose, and pads before taking anything apart.
• If the rotor is deeply grooved, cracked, heavily rusted, or below service thickness, replace or resurface it before installing new pads.

Step 5: Remove the Caliper Guide Pin Bolts

• Use a 13mm socket and 3/8-inch ratchet to remove the upper and lower caliper guide pin bolts.
• If the guide pin spins, hold it steady with an 18mm wrench while loosening the bolt with the 13mm socket.
• A guide pin is a smooth sliding pin that lets the caliper move evenly as the pads wear.

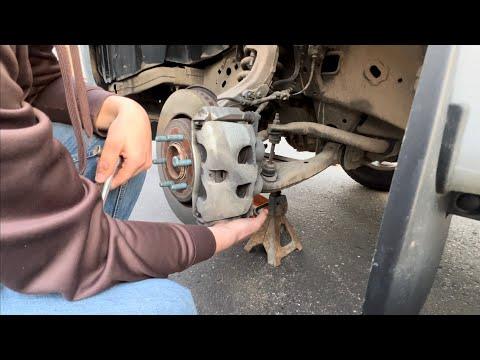

Step 6: Lift Off and Support the Caliper

• Use a flathead screwdriver to gently pry the caliper away from the rotor if it feels stuck.
• Lift the caliper off the bracket by hand.
• Hang the caliper from the suspension with a bungee cord.
• Do not let the caliper hang by the rubber brake hose.

Step 7: Remove the Old Brake Pads and Hardware

• Slide the old brake pads out of the caliper bracket by hand.
• Use a flathead screwdriver to carefully pop the old metal pad clips out of the bracket.
• These clips are called brake hardware. They help the pads slide smoothly and quietly.

Step 8: Clean the Caliper Bracket

• Use a wire brush to clean rust and dirt from the areas where the pad hardware sits.
• Spray the bracket with brake cleaner and let it dry.
• Do not spray brake cleaner on painted surfaces.
• Clean slides prevent noise.

Step 9: Install New Pad Hardware

• Press the new front brake pad hardware kit clips into the caliper bracket by hand.
• Make sure each clip sits fully flat and locked into place.
• Apply a thin layer of brake lubricant to the areas of the clips where the pads touch.
• Do not put lubricant on the pad friction material or rotor surface.

Step 10: Compress the Caliper Pistons

• Place one old brake pad against the caliper pistons.
• Use a brake caliper piston compressor tool to slowly push the pistons fully back into the caliper.
• A piston is the round metal piece inside the caliper that pushes the brake pad.
• Watch the brake fluid reservoir while compressing the pistons. Stop if the fluid gets close to overflowing.
• Compress slowly to avoid damaging seals.

Step 11: Install the New Brake Pads

• Slide the new front brake pad set into the caliper bracket by hand.
• Make sure the friction material faces the rotor.
• If one pad has a wear indicator tab, install it in the same position as the original pad.
• The pads should slide smoothly in the hardware without being forced.

Step 12: Reinstall the Caliper

• Lower the caliper over the new pads by hand.
• Start both caliper guide pin bolts by hand to avoid cross-threading.
• Use a 13mm socket and 3/8-inch ratchet to snug the bolts.
• Hold the guide pin with an 18mm wrench if it spins.
• Tighten the caliper guide pin bolts with a torque wrench to Torque to 35 Nm (26 ft-lbs).

Step 13: Repeat on the Other Side

• Repeat Steps 4 through 12 on the other front wheel.
• Always replace front brake pads as a pair, left and right.

Step 14: Reinstall the Wheels

• Place each wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket and 3/8-inch ratchet to snug the lug nuts in a star pattern.

Step 15: Lower the Truck and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck to the ground.
• Use a 21mm lug nut socket and 1/2-inch torque wrench to tighten the lug nuts in a star pattern.
• Tighten the lug nuts to Torque to 204 Nm (150 ft-lbs).

Step 16: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back against the new pads.
• Do not drive until the pedal feels firm.

---

✅ After Repair

• ✅ Check the brake fluid level and top off only if needed with the correct brake fluid listed on the reservoir cap.
• ✅ Start your F-150 and press the brake pedal again. It should feel firm, not soft or sinking.
• ✅ Test the brakes at low speed in a safe area before normal driving.
• ✅ Bed in the pads if your pad manufacturer requires it. A common method is several gentle-to-medium stops from about 30-40 mph, allowing cooling time between stops.
• ✅ Avoid hard braking for the first 100-200 miles unless needed for safety.
• ✅ Recheck lug nut torque after the first short drive: Torque to 204 Nm (150 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
