🔧 Elantra - Front Brake Pad and Rotor Replacement

This repair replaces the front brake pads and both front rotors on your Elantra. Replacing both sides together helps the vehicle brake evenly and prevents pulling or vibration.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Elantra with jack stands. Never work under a vehicle supported only by a floor jack.
• ⚠️ Brake dust can be harmful. Do not blow it away with compressed air.
• ⚠️ Do not press the brake pedal while a caliper is removed.
• ⚠️ Never allow a caliper to hang from its rubber brake hose.
• ⚠️ Brake fluid damages paint. Wipe spills up immediately and rinse with water.
• ⚠️ The front brakes do not require electronic parking-brake service mode.
• ⚠️ Battery disconnection is not required.

---

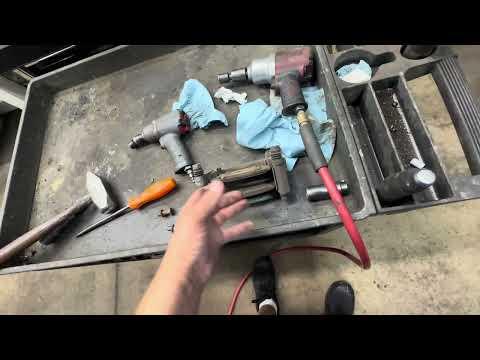

🔧 Required Tools

You'll need the following tools for this repair:

• 3-ton floor jack
• 3-ton jack stands
• Rubber wheel chocks
• 21mm deep socket
• 14mm socket
• 17mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench (20-150 ft-lbs)
• Phillips No. 3 impact screwdriver
• Brake caliper piston compression tool (specialty)
• Flat-tip screwdriver
• Small fluid extractor
• Steel brake-parts wire brush
• Rubber mallet
• Caliper hanger hooks
• Disposable shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad hardware kit - Qty: 1
• Brake parts cleaner - Qty: 2 cans
• High-temperature ceramic brake lubricant - Qty: 1 packet
• DOT 3 or DOT 4 brake fluid - Qty: 500 ml, only if needed

---

📋 Before You Begin

• 🚗 Park your Elantra on firm, level ground. Shift the transmission into first gear and apply the parking brake.
• 🛞 Place rubber wheel chocks securely behind both rear wheels.
• 🧊 Allow the brakes to cool completely before touching them.
• 📦 Confirm that the new rotors have the same diameter, thickness, and wheel-bolt pattern as the removed rotors.
• 🧴 Open the hood and inspect the brake-fluid reservoir. If the fluid is near the MAX line, remove a small amount with a fluid extractor before compressing the pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Nuts

• Keep the vehicle on the ground and use a 21mm deep socket with a 1/2-inch breaker bar to loosen each front wheel nut about one-half turn.
• Do not remove the wheel nuts yet.

Step 2: Raise and Support the Vehicle

• Use the 3-ton floor jack at the front-center subframe lifting point to raise the front of your Elantra.
• Place the 3-ton jack stands under the reinforced left and right front support points.
• Lower the vehicle gently onto the stands. Push lightly on the body to confirm it is stable.
• Keep the floor jack nearby as backup support.

Step 3: Remove Both Front Wheels

• Use the 21mm deep socket and 3/8-inch ratchet to remove the wheel nuts.
• Remove both front wheels and place them flat away from your work area.
• Work on one side at a time so the other side remains available as a reference.

Step 4: Remove the Brake Caliper

• Turn the steering wheel so the caliper on the side being serviced is easier to reach.
• Use a 14mm socket and 3/8-inch ratchet to remove the upper and lower caliper guide-pin bolts.
• A guide pin is the sliding pin that allows the caliper to move as the brakes are applied.
• Lift the caliper from the bracket. Use a caliper hanger hook to support it from the suspension spring.
• Do not twist, stretch, or support the caliper by its brake hose.

Step 5: Remove the Old Brake Pads

• Use a flat-tip screwdriver to slide the inner and outer pads from the caliper bracket.
• Remove the upper and lower stainless-steel pad clips with the flat-tip screwdriver.
• Note the position of the inner pad wear indicator before removing it.

Step 6: Compress the Caliper Piston

• Check the brake-fluid reservoir and use the small fluid extractor if the level is close to overflowing.
• Place an old brake pad against the piston. Use the brake caliper piston compression tool to press the piston slowly and evenly into the caliper.
• Stop if the piston binds, the rubber boot folds inward, or fluid leaks from the caliper.
• Slow pressure protects the piston seal.

Step 7: Remove the Caliper Bracket

• Use a 17mm socket and 1/2-inch breaker bar to remove the two caliper-bracket bolts.
• Lift the bracket away from the rotor.
• Keep grease and brake fluid away from all pad and rotor friction surfaces.

Step 8: Remove the Old Rotor

• If fitted, use a Phillips No. 3 impact screwdriver to remove the rotor retaining screws.
• Pull the rotor straight off the hub.
• If it is rusted in place, strike the rotor hat between the wheel studs with a rubber mallet. The rotor hat is the raised center section of the rotor.
• Do not strike the wheel studs or the braking surface being retained for inspection.

Step 9: Clean the Hub and New Rotor

• Use the steel brake-parts wire brush to remove rust and scale from the hub face.
• Wipe the hub with brake parts cleaner and disposable shop towels. The rotor must sit completely flat against it.
• Spray both friction surfaces of the new rotor with brake parts cleaner and wipe them dry using disposable shop towels.
• A clean hub helps prevent brake vibration.

Step 10: Install the New Rotor

• Slide the new rotor over the wheel studs with clean, gloved hands.
• If equipped, install the rotor retaining screws with the Phillips No. 3 impact screwdriver and tighten them to 5.9-8.8 Nm (52-78 in-lbs).
• Do not apply grease to the rotor face or wheel studs.

Step 11: Service the Caliper Bracket

• Use the steel brake-parts wire brush to clean rust from the bracket surfaces beneath the pad clips.
• Install the new upper and lower pad clips by hand.
• Use a gloved fingertip to apply a very thin layer of high-temperature ceramic brake lubricant where the pad ears contact the clips.
• Pull each guide pin from its rubber boot by hand, wipe it with disposable shop towels, and apply a thin layer of compatible brake lubricant.
• Reinstall each guide pin into its original position. Confirm that it slides freely and its rubber boot is fully seated.

Step 12: Reinstall the Caliper Bracket

• Position the bracket over the new rotor and start both bolts by hand.
• Use the 17mm socket and torque wrench to tighten the bracket bolts evenly to 78.5-98.1 Nm (58-72 ft-lbs).

Step 13: Install the New Brake Pads

• Slide the new inner and outer pads into the bracket by hand.
• Position the pad with the wear indicator in the same location as the original inner pad.
• Verify that both pads move smoothly in the clips without excessive looseness.
• Do not put lubricant on the pad friction material or rotor.

Step 14: Reinstall the Brake Caliper

• Remove the caliper hanger hook and lower the caliper over the new pads without twisting the brake hose.
• Align the guide pins and start both guide-pin bolts by hand.
• Use the 14mm socket and torque wrench to tighten the guide-pin bolts to 21.6-31.4 Nm (16-23 ft-lbs).
• Repeat Steps 4 through 14 on the opposite front wheel.

Step 15: Reinstall the Wheels

• Place each wheel onto the hub and start every wheel nut by hand.
• Use the 21mm deep socket and 3/8-inch ratchet to snug the nuts in a crisscross pattern.
• Use the 3-ton floor jack to raise the vehicle slightly, remove the jack stands, and lower the vehicle to the ground.
• Use the 21mm deep socket and torque wrench to tighten the wheel nuts in a crisscross pattern to 107.9-127.5 Nm (80-94 ft-lbs).

Step 16: Restore Brake-Pedal Pressure

• With the engine off, press and release the brake pedal several times until it becomes firm.
• Check the brake-fluid reservoir. Add only fresh DOT 3 or DOT 4 brake fluid if the level is below the correct mark.
• Use disposable shop towels to clean any spilled fluid immediately.

---

✅ After Repair

• ✅ Start the engine and hold firm pressure on the brake pedal. The pedal should remain steady and must not sink toward the floor.
• 🔍 Inspect both front calipers and brake hoses for leaks or incorrect positioning.
• 🚗 Test the brakes at walking speed in a safe, traffic-free area before normal driving.
• 🛑 Unless the pad manufacturer specifies otherwise, make 8-10 moderate stops from approximately 50 km/h to 10 km/h. Allow about 30 seconds between stops.
• 🌡️ Avoid holding the brake pedal down while stopped immediately after bedding the pads.
• 🧊 Drive for 10-15 minutes without heavy braking afterward to let the brakes cool.
• 🔧 Recheck wheel-nut torque after approximately 80-160 km.
• ⚠️ Do not drive if the pedal remains soft, fluid leaks, or the vehicle pulls sharply while braking.

---

💰 DIY vs Shop Cost

Shop Cost: ₹14,000-₹25,000 (parts + labor)

DIY Cost: ₹7,000-₹15,000 (parts only)

You Save: ₹7,000-₹10,000 by doing it yourself!

Local labor rates and imported part prices vary. This repair takes a shop approximately 1.5-2.5 hours.

---
