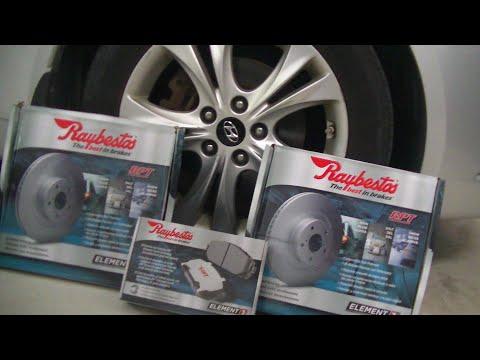

🔧 Sonata - Front Brake Pad and Rotor Replacement

This repair replaces the front brake pads and both front rotors on your Sonata. New pads restore braking material, while new rotors provide a smooth surface and help prevent vibration or pulsation.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Sonata with jack stands. Never work under a vehicle supported only by a jack.
• 🧤 Brake dust can be harmful. Do not use compressed air; wet the dust with brake cleaner.
• 🌡️ Let the brakes cool completely before starting.
• 🛑 Do not press the brake pedal while a caliper is removed.
• 🔗 Never let a caliper hang from its rubber brake hose.
• 💧 Watch the brake-fluid reservoir while compressing the pistons. Remove excess fluid if it approaches the top.
• 🔋 Battery disconnection is not required for this front-brake repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• 21mm deep socket
• 14mm socket
• 17mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench rated 20-150 ft-lbs
• 3/8-inch drive torque wrench rated 40-250 in-lbs
• Phillips No. 3 impact screwdriver
• Ball-peen hammer 16-ounce
• Brake caliper piston compression tool (specialty)
• Brake-fluid extractor (specialty)
• Nylon brake-caliper brush
• Small flat-blade screwdriver
• Bungee cord rated 25 pounds minimum
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set with wear indicators - Qty: 1
• Front brake rotors - Qty: 2; replace in pairs
• Front brake pad hardware kit - Qty: 1
• Silicone-based brake lubricant - Qty: 1
• Non-chlorinated brake cleaner - Qty: 2 cans
• DOT 3 or DOT 4 brake fluid - Qty: 1 small sealed bottle, only if needed

---

📋 Before You Begin

• 📍 Park your Sonata on firm, level ground. Shift into Park, apply the parking brake, and switch off the engine.
• 🧱 Place wheel chocks tightly behind both rear tires.
• 🔩 Loosen each front wheel nut about one-quarter turn before lifting the vehicle.
• 📱 No infotainment service mode, electronic parking-brake retraction, scan tool, coding, or calibration is required.
• 📸 Take a picture of the original pad clips and wear-indicator positions before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Nuts

• Use the 21mm deep socket and 1/2-inch drive breaker bar to loosen the five nuts on each front wheel about one-quarter turn.
• Do not remove the wheel nuts while your Sonata is still on the ground.

Step 2: Raise and Support the Front

• Position the floor jack rated 2-ton minimum under the approved front-center lifting point on the front subframe.
• Raise your Sonata and place the jack stands rated 2-ton minimum beneath the reinforced front side pinch-weld support points.
• Lower the vehicle gently onto the stands, then give it a careful stability check.
• Keep the floor jack lightly touching the lift point.

Step 3: Remove the Wheels

• Use the 21mm deep socket and 3/8-inch drive ratchet to remove the wheel nuts.
• Remove both front wheels and slide them under the rocker-panel area as an additional precaution.

Step 4: Check the Brake-Fluid Level

• Open the hood and locate the brake-fluid reservoir near the driver-side firewall.
• Check the fluid level before compressing either caliper piston.
• If the reservoir is already at the MAX line, use the brake-fluid extractor to remove a small amount. Keep brake fluid off painted surfaces.

Step 5: Remove the First Caliper

• Turn the steering wheel to expose the back of the caliper.
• Use the 14mm socket and 3/8-inch drive ratchet to remove the upper and lower caliper guide-pin bolts.
• Lift the caliper from the bracket. Support it from the suspension spring with the bungee cord rated 25 pounds minimum.
• Do not twist, stretch, or kink the brake hose.

Step 6: Remove the Old Pads and Hardware

• Slide the inner and outer pads out of the caliper bracket by hand.
• Use the small flat-blade screwdriver to remove the stainless-steel pad clips.
• Note which pad carries the metal wear indicator so the new pad can be installed in the same position.

Step 7: Remove the Caliper Bracket

• Use the 17mm socket and 1/2-inch drive breaker bar to remove the two caliper-bracket bolts.
• Hold the bracket securely because it is heavier than it looks.

Step 8: Remove the Old Rotor

• Use the Phillips No. 3 impact screwdriver to loosen the rotor-retaining screw. An impact screwdriver turns the bit when its handle is struck.
• If necessary, strike the impact screwdriver squarely with the ball-peen hammer 16-ounce.
• Pull the rotor from the hub. If rust holds it in place, tap only the rotor hat with the ball-peen hammer 16-ounce while rotating the rotor.
• Do not strike the wheel studs or hub-bearing center.

Step 9: Clean and Inspect the Hub

• Use the nylon brake-caliper brush and non-chlorinated brake cleaner to remove rust and dirt from the hub face.
• Make sure the new rotor can sit completely flat against the hub. Debris trapped here can cause brake pulsation.
• Inspect the caliper, hose, piston boot, and guide-pin boots. Replace damaged components before continuing.

Step 10: Install the New Rotor

• Clean both friction faces of the new rotor thoroughly with non-chlorinated brake cleaner and wipe them with a clean disposable towel.
• Place the rotor squarely over the wheel studs.
• Install the retaining screw with the Phillips No. 3 impact screwdriver. Torque to 4.9-5.9 Nm (43-52 in-lbs).
• Do not apply lubricant between the rotor and hub.

Step 11: Service the Caliper Bracket

• Use the nylon brake-caliper brush to clean the pad-support areas on the bracket.
• Install the new stainless-steel pad hardware by hand. Confirm every clip is fully seated.
• Pull each guide pin out by hand, one at a time. A guide pin is the smooth sliding pin that lets the caliper move as the brakes apply.
• Wipe the pin clean and apply a thin coat of silicone-based brake lubricant. Reinstall it into its original bore without trapping air in the rubber boot.
• Do not use petroleum grease because it can damage brake rubber.

Step 12: Reinstall the Caliper Bracket

• Position the bracket over the new rotor and start both bolts by hand.
• Use the 17mm socket and 1/2-inch drive torque wrench to tighten both bracket bolts. Torque to 78.5-98.1 Nm (58-72 ft-lbs).

Step 13: Compress the Caliper Piston

• Place the old inner pad against the piston to spread the force evenly.
• Use the brake caliper piston compression tool to push the piston slowly and completely into the caliper.
• Watch the reservoir while compressing the piston. Use the brake-fluid extractor if the fluid approaches the top.
• Stop if the piston is crooked, seized, or leaking.

Step 14: Install the New Brake Pads

• Apply a very thin film of silicone-based brake lubricant only where the pad ears contact the stainless-steel clips.
• Install the inner and outer pads by hand with the friction material facing the rotor.
• Place the wear-indicator pad in the same position as the original pad.
• Do not get lubricant on the rotor or pad friction surfaces.

Step 15: Reinstall the Caliper

• Remove the support cord and lower the caliper over the new pads without twisting the hose.
• Start both guide-pin bolts by hand.
• Use the 14mm socket and 3/8-inch drive torque wrench to tighten the guide-pin bolts. Torque to 21.6-31.4 Nm (16-23 ft-lbs).
• Confirm the guide-pin boots are seated and not twisted.

Step 16: Repeat on the Other Side

• Repeat Steps 4 through 15 on the opposite front brake using the same listed tools.
• Compare both completed sides before installing the wheels.

Step 17: Reinstall the Wheels

• Install each wheel and start all five nuts by hand.
• Use the 21mm deep socket and 3/8-inch drive ratchet to snug the nuts in a star pattern.
• Raise your Sonata slightly with the floor jack rated 2-ton minimum, remove the stands, and lower the tires to the ground.
• Use the 21mm deep socket and 1/2-inch drive torque wrench to tighten the wheel nuts in a star pattern. Torque to 108-127 Nm (80-94 ft-lbs).

---

✅ After Repair

• 🦶 With the engine off, press the brake pedal slowly several times until it feels firm. Do not move your Sonata before the pedal is firm.
• 💧 Check the reservoir and adjust it to the MAX line only with fresh DOT 3 or DOT 4 brake fluid. Do not overfill it.
• 🔍 Start the engine and hold firm pedal pressure for 30 seconds. Check for sinking pedal feel, leaks, warning lights, or unusual noises.
• 🚗 In a safe area, test the brakes at walking speed before entering traffic.
• 🔥 Bed in the pads with 8-10 moderate stops from approximately 50 km/h to 10 km/h. Do not come to a complete stop during each cycle, and allow the brakes to cool afterward.
• 🛑 Avoid panic stops and prolonged pedal holding for the first 300 km unless required for safety.
• 🔩 Recheck wheel-nut torque after approximately 80-100 km.
• ⚠️ Do not drive if the pedal remains soft, fluid leaks, the vehicle pulls strongly, or a brake warning light stays on.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹32,000 (parts + labor)

DIY Cost: ₹9,000-₹18,000 (parts only)

You Save: ₹9,000-₹14,000 by doing it yourself!

Labor rates around Sonīpat vary by workshop and parts brand. This repair takes a shop approximately 1.5-2.5 hours.

---
