🔧 Sentra - Front Lower Ball Joint Replacement

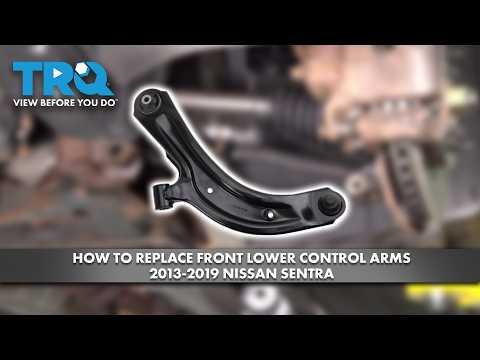

On your Sentra, the front lower ball joint is supplied as part of the lower control arm, also called the transverse link. The safest manufacturer-style repair is to replace the complete control-arm assembly rather than press an aftermarket joint into the old arm.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per side

Assumption: These instructions cover one front lower control arm; repeat them on the opposite side if needed.

---

⚠️ Safety & Precautions

• ⚠️ Never work beneath your Sentra while it is supported only by a floor jack.
• 🛞 Support the vehicle with jack stands at the front body support points.
• 🧤 Wear safety glasses and mechanic’s gloves because rust and debris may fall during removal.
• 🔩 Do not loosen the axle nut; axle removal is unnecessary for this repair.
• 📐 Have a four-wheel alignment performed after replacing a control arm.
• 🔋 Battery disconnection is not required.
• 🚫 Do not drive if the ball-joint stud, nut, or control-arm mounting bolts cannot be fully tightened.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Hydraulic floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 3/8-inch drive ratchet
• 16mm combination wrench
• 18mm combination wrench
• 21mm combination wrench
• 16mm six-point socket
• 18mm six-point socket
• 21mm six-point socket
• 21mm deep wheel-nut socket
• 1/2-inch drive extension set
• Torque wrench rated 20-200 Nm
• Ball-joint separator (specialty)
• Medium pry bar
• 16-ounce ball-peen hammer
• Needle-nose pliers
• Wire brush
• Paint marker
• Penetrating oil aerosol
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control-arm assembly with ball joint - Qty: 1 per side
• Lower ball-joint self-locking nut - Qty: 1 per side
• Lower control-arm mounting hardware set - Qty: 1 per side

Replacing both sides is recommended when both original joints have similar mileage or looseness, but it is not mandatory when only one side is damaged.

---

📋 Before You Begin

• 🅿️ Park on firm, level ground. Shift the manual transmission into first gear and apply the parking brake.
• 🧱 Place wheel chocks securely behind both rear tires.
• 📦 Compare the new control arm with the removed-side location. The left and right arms are different.
• 🧼 Spray penetrating oil on the ball-joint nut and both control-arm mounting fasteners. Allow several minutes for it to soak.
• 📱 No infotainment service mode, scan-tool command, electronic parking-brake procedure, or battery registration is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Nuts

• Use a 21mm deep wheel-nut socket and 1/2-inch drive breaker bar to loosen each wheel nut approximately one-half turn.
• Do not remove the nuts while the tire is still supporting the vehicle.

Step 2: Raise and Support the Vehicle

• Use the hydraulic floor jack under the reinforced front-center lifting point to raise your Sentra.
• Position the jack stands beneath the reinforced front side support points.
• Lower the vehicle gently onto the stands, then lightly shake the body to confirm it is stable.
• Keep the jack nearby as backup support.

Step 3: Remove the Front Wheel

• Use the 21mm deep wheel-nut socket and 1/2-inch drive ratchet to remove the wheel nuts.
• Remove the wheel and place it flat away from the work area.

Step 4: Inspect and Mark the Mounting Points

• Use a wire brush to clean dirt and corrosion from the ball-joint stud and control-arm fasteners.
• Use a paint marker to mark each fastener’s installed direction and the control arm’s position.
• Check that the steering-knuckle hole is not elongated and that the subframe mounting points are not bent.

Step 5: Disconnect the Ball Joint

• Use needle-nose pliers to remove the cotter pin if the installed ball-joint nut uses one.
• Use a 21mm six-point socket with the 1/2-inch drive breaker bar to loosen the ball-joint nut.
• Leave the nut threaded on by several turns while separating the joint. This prevents the knuckle from dropping suddenly.
• Fit the ball-joint separator between the control arm and steering knuckle. A ball-joint separator is a tool that safely pushes the tapered stud out of the knuckle.
• Tighten the separator with the appropriate socket and ratchet until the taper releases.
• If needed, strike the side of the knuckle boss with the 16-ounce ball-peen hammer. Do not hit the threaded stud, brake rotor, or ABS sensor.
• Remove the loosened nut with the 21mm six-point socket.

Step 6: Remove the Control-Arm Mounting Fasteners

• Support the outer end of the arm with the hydraulic floor jack without lifting the vehicle off its stand.
• Use the 18mm six-point socket, 18mm combination wrench, and 1/2-inch drive breaker bar to loosen the front control-arm mounting bolt.
• Use the 21mm six-point socket, 21mm combination wrench, and 1/2-inch drive breaker bar to remove the rear mounting fastener.
• Fastener head sizes can differ when previous repairs used aftermarket hardware; always use the snug-fitting six-point socket listed for the installed fastener.
• Remove the front mounting bolt last while supporting the control arm.

Step 7: Remove the Old Control Arm

• Use the medium pry bar carefully between the control-arm bushing and subframe bracket.
• Pull the ball-joint stud clear of the steering knuckle, then work the arm out of its brackets.
• Do not pull outward forcefully on the steering knuckle because that can overextend the inner CV joint or brake hose.

Step 8: Compare and Position the New Control Arm

• Place the old and new arms side by side. Confirm that the bushings, ball-joint angle, mounting holes, and overall shape match.
• Guide the new arm into the subframe brackets by hand.
• Use the medium pry bar only for gentle alignment of the bushing sleeves.
• Install the front and rear mounting fasteners by hand. Do not fully tighten them yet.

Step 9: Connect the New Ball Joint

• Move the steering knuckle over the new ball-joint stud by hand.
• Use the medium pry bar gently if additional alignment is needed. Keep the pry bar away from the rubber dust boot.
• Thread the new self-locking nut onto the stud by hand to prevent cross-threading.
• Use the 21mm six-point socket and torque wrench to tighten the ball-joint nut to 72 Nm (53 ft-lbs).
• If the replacement joint uses a castellated nut and cotter pin, continue tightening only enough to align the next slot, then install the supplied new cotter pin using needle-nose pliers. Never loosen the nut to align the slot.

Step 10: Load the Suspension Bushings

• Place the hydraulic floor jack beneath the control arm near the ball joint.
• Raise the arm carefully until it reaches its normal approximate ride-height position. Keep the vehicle’s weight supported by the jack stand.
• This step prevents the rubber bushings from being twisted when the vehicle returns to the ground.

Step 11: Tighten the Control-Arm Fasteners

• Use the 18mm six-point socket, 18mm combination wrench, and torque wrench to tighten the front control-arm fastener to 93 Nm (69 ft-lbs).
• Use the 21mm six-point socket, 21mm combination wrench, and torque wrench to tighten the rear control-arm fastener to 121 Nm (89 ft-lbs).
• Lower and remove the hydraulic floor jack from beneath the arm.
• Inspect the ball-joint dust boot and confirm it is not pinched, cut, or twisted.

Step 12: Reinstall the Wheel

• Install the wheel and start all five wheel nuts by hand.
• Use the 21mm deep wheel-nut socket and 1/2-inch drive ratchet to snug the nuts in a star pattern.
• Use the hydraulic floor jack to raise the vehicle, remove the jack stands, and lower the tire to the ground.
• Use the 21mm deep wheel-nut socket and torque wrench to tighten the wheel nuts in a star pattern to 113 Nm (83 ft-lbs).

---

✅ After Repair

• 🔍 Confirm that every mounting fastener is tightened and the ball-joint dust boot remains properly seated.
• 🔄 Turn the steering wheel slowly from lock to lock while parked. Listen for binding, clunks, or scraping.
• 🚗 Take a short, low-speed road test. Stop immediately if the steering feels loose or the vehicle pulls sharply.
• 📐 Arrange a four-wheel alignment as soon as possible because control-arm replacement can change toe and camber.
• 🔩 Recheck the wheel-nut torque to 113 Nm (83 ft-lbs) after approximately 80-160 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹24,000 per side (parts + labor + alignment)

DIY Cost: ₹5,000-₹12,000 per side (parts + alignment)

You Save: ₹7,000-₹12,000 by doing it yourself!

Labor rates around Sonīpat vary. This repair takes a shop approximately 1.5-2.5 hours per side, plus alignment time.

---
