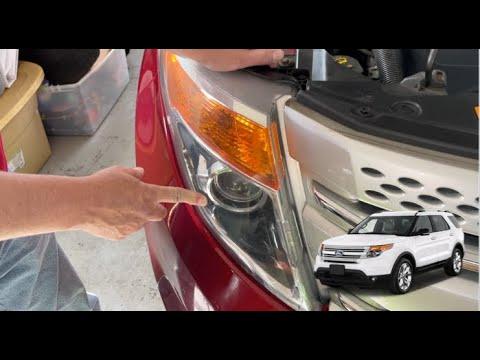

🔧 Explorer - Low-Beam Headlight Bulb Replacement

This procedure replaces both halogen low-beam bulbs from behind the headlamp housings. Replacing them as a pair keeps the brightness and color even.

Assumption: Your Explorer has factory halogen headlamps; the low-beam bulb type is H11.

Difficulty Level: Beginner | Estimated Time: 20-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the exterior lights off and allow the bulbs to cool completely.
• 🧤 Wear clean nitrile gloves. Skin oil can create a hot spot and shorten a halogen bulb’s life.
• 🔌 Do not switch on the headlights while a bulb connector is unplugged.
• 🚫 Do not touch the glass portion of either new bulb.
• 🔋 Battery disconnection is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/4-inch-drive ratchet
• 8mm socket
• 6-inch socket extension
• Trim-clip removal tool (specialty)
• LED work light
• Clean nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• H11 halogen low-beam headlight bulbs - Qty: 2 - Replace in pairs

---

📋 Before You Begin

• 🅿️ Park your Explorer on level ground, shift into Park, apply the parking brake, and switch off the ignition.
• 💡 Set the headlamp control to OFF rather than AUTO.
• 🌡️ Open the hood and wait at least 10 minutes if the headlights were recently operating.
• 📦 Compare each new H11 bulb with the original before installation. The locking tabs and electrical connector must match.
• 🧼 Keep each new bulb in its packaging until you are ready to install it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and Secure the Hood

• Pull the hood-release handle inside your Explorer, release the secondary latch, and raise the hood.
• Use the factory hood support to secure the hood fully.
• Use an LED work light to locate the round low-beam bulb opening behind each headlamp housing.

Step 2: Create Working Room if Needed

• Use an 8mm socket, 6-inch socket extension, and 1/4-inch-drive ratchet to remove only the nearby intake fastener if the intake duct blocks hand access.
• Use a trim-clip removal tool to lift any reusable intake-duct retainer that prevents the duct from moving aside.
• Move the duct only enough to reach the rear of the headlamp. Do not pull on wiring or fluid hoses.
• Fasteners removed only for access will be tightened snugly during reassembly; do not overtighten plastic components.

Step 3: Remove the First Low-Beam Bulb

• Put on clean nitrile gloves and safety glasses.
• Use the LED work light to identify the H11 low-beam bulb at the rear of the headlamp housing.
• Press the locking tab on the electrical connector by hand, then pull the connector straight off the bulb base. Pull on the connector, not the wires.
• Grip the bulb’s plastic base by hand and rotate it counterclockwise approximately one-quarter turn.
• Pull the bulb straight out without striking the glass against the housing.
• Compare old and new bulb tabs before installation.

Step 4: Install the First New Bulb

• Hold the new H11 bulb only by its plastic base while wearing clean nitrile gloves.
• Use the LED work light to align the bulb’s three locating tabs with the slots in the housing.
• Insert the bulb fully, then rotate it clockwise by hand until it stops and locks firmly.
• Push the electrical connector onto the bulb until its locking tab clicks.
• Do not use a ratchet or pliers on the bulb; it locks by hand and has no torque specification.

Step 5: Replace the Bulb on the Opposite Side

• Use the LED work light to locate the opposite low-beam bulb.
• Press the connector tab by hand and unplug the connector.
• Rotate the old bulb counterclockwise by hand and remove it.
• Insert the second new H11 bulb without touching its glass.
• Rotate it clockwise by hand until locked, then reconnect the electrical connector until it clicks.

Step 6: Reinstall Any Removed Intake Components

• Return the intake duct to its original seated position by hand. Check that no wiring is trapped beneath it.
• Use the trim-clip removal tool by hand to guide any reusable retainer back into place, then press its center pin down.
• Use an 8mm socket, 6-inch socket extension, and 1/4-inch-drive ratchet to reinstall any removed intake fastener.
• Tighten the plastic-mounted intake fastener only until snug because Ford does not publish a bulb-service torque specification for it.

Step 7: Test Both Headlights

• Remove the LED work light and all tools from the engine compartment.
• Switch the ignition on, then turn the headlamp control to the low-beam position.
• Verify that both low-beam bulbs illuminate steadily and have similar brightness.
• Switch between low and high beams to confirm normal operation, then turn the lights off.
• Close the hood securely.

---

✅ After Repair

• 🌙 Park on level ground facing a wall and confirm both light patterns sit at approximately the same height.
• 🔍 Check behind each headlamp for a loose connector or bulb that is not fully locked.
• 🧽 If a bulb’s glass was accidentally touched, remove it while cool and clean it with isopropyl alcohol and a lint-free cloth before use.
• ♻️ Place the old bulbs in the new-bulb packaging and take them to an appropriate automotive waste or recycling facility.
• 🛠️ Headlamp aiming should not change because the housings were not removed. If the beam is now badly misaligned, verify bulb seating before adjusting the lamps.

---

💰 DIY vs Shop Cost

Shop Cost: ₹3,500-₹7,000 (parts + labor)

DIY Cost: ₹1,500-₹4,500 (parts only)

You Save: ₹2,000-₹2,500 by doing it yourself!

Local labor and imported H11 bulb prices vary. This repair takes a shop approximately 0.3-0.5 hour.

---
