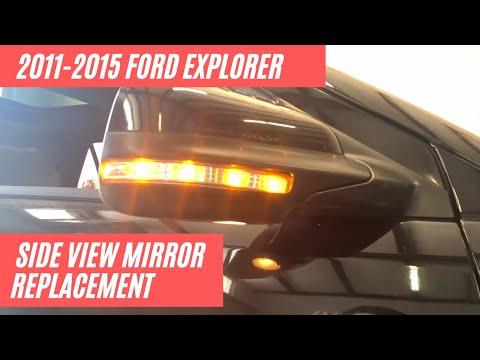

🔧 Explorer - Side View Mirror Assembly Replacement

This procedure replaces one complete outside mirror assembly. The interior front-door trim panel must be loosened to reach the mirror’s electrical connector and three mounting nuts.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours per mirror

Assumption: The replacement mirror matches the original side and features, including heat, puddle lamp, memory, or blind-spot monitoring when equipped.

---

⚠️ Safety & Precautions

• ⚠️ Wear safety glasses and gloves because broken mirror glass is extremely sharp.
• ⚠️ Support the mirror before removing its final nut so it cannot fall against the door.
• ⚠️ Do not pry against painted surfaces; cover nearby paint with masking tape.
• ⚠️ Disconnect the negative battery cable before unplugging the mirror wiring. This also reduces the chance of operating the window while the door panel is loose.
• ⚠️ Wait at least one minute after disconnecting the battery before working inside the door.
• ⚠️ If equipped with blind-spot monitoring, install a compatible mirror assembly and do not disturb the rear radar modules behind the bumper.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4-inch-drive ratchet
• 1/4-inch-drive 6-inch extension
• Inch-pound torque wrench rated 20-200 lb-in
• Plastic interior trim-removal tool set
• Small flat-blade screwdriver
• Magnetic pickup tool
• Masking tape
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Complete side-view mirror assembly matching original features - Qty: 1 per side
• Front door trim-panel retaining clips - Qty: As needed

---

📋 Before You Begin

• 🅿️ Park your Explorer on level ground, shift into Park, set the parking brake, and lower the window on the side being repaired.
• 🔍 Compare the replacement mirror’s connector, mounting studs, glass shape, and installed features with the old mirror.
• 🪟 Move the window fully down before disconnecting power. This gives you another way to steady the door and mirror.
• 🔋 Switch off the ignition. Use a 10mm socket and ratchet to disconnect the negative battery cable, then position it where it cannot touch the terminal.
• 📻 Battery disconnection may reset the clock and one-touch window function. Save any settings you need first.
• 🛡️ Apply masking tape around the mirror base and upper door trim to protect the paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Interior Mirror Corner Trim

• Use a plastic interior trim-removal tool to carefully release the triangular trim panel at the upper-front corner of the door.
• Pull the panel straight inward rather than sliding it across the door.
• Disconnect the small speaker connector if the panel contains a tweeter.
• Keep each fastener grouped by location.

Step 2: Remove the Door-Pull Trim and Switch Panel

• Use a plastic interior trim-removal tool to lift the door-pull trim insert and expose the concealed fasteners.
• Use a plastic interior trim-removal tool to lift the power-window switch panel from its rear edge.
• Press each connector’s locking tab with a small flat-blade screwdriver, then unplug the switch panel. Pull on the connector body, not the wires.
• A retaining clip is a reusable plastic fastener that snaps the trim panel to the metal door.

Step 3: Remove the Door-Panel Fasteners

• Use an 8mm socket, 1/4-inch-drive extension, and ratchet to remove the exposed door-panel screws around the pull-handle and lower edge.
• Check the door-release-handle area for a concealed screw cover. Remove the cover with a plastic interior trim-removal tool, then remove the screw with the correctly fitting 8mm socket.
• Place the screws in order so each one returns to its original location.

Step 4: Release and Lift the Door Trim Panel

• Insert a plastic interior trim-removal tool between the lower trim panel and metal door.
• Work around the bottom and sides, releasing one retaining clip at a time.
• Lift the panel straight upward to unhook it from the window ledge.
• Support the panel while disconnecting any remaining lamp, speaker, or door-release connections.
• Move the panel to a clean, padded surface.

Step 5: Expose and Disconnect the Mirror Wiring

• Carefully peel back only the upper-front section of the moisture barrier by hand. The moisture barrier is the plastic sheet that keeps rainwater away from the interior trim.
• Locate the mirror harness connector inside the door.
• Use a small flat-blade screwdriver to release the connector lock, then unplug the mirror harness.
• Release the harness from its clips by hand so it can pass through the door opening.
• Do not cut or tear the moisture barrier.

Step 6: Remove the Old Mirror

• Reach through the open window and hold the mirror firmly with one hand.
• Use a 10mm socket, 6-inch extension, and ratchet to remove the three mirror mounting nuts.
• Use a magnetic pickup tool if a nut drops inside the door.
• Feed the electrical connector through the opening, then lift the mirror away from the door.
• Do not pry the mirror base from the paint. Gently rock it by hand if the foam seal sticks.

Step 7: Install the Replacement Mirror

• Clean the mounting surface by hand and verify that the replacement mirror’s foam weather seal lies flat.
• Feed the electrical connector through the door opening and place the mirror studs into their holes.
• Hold the mirror against the door and start all three nuts by hand to prevent crossed threads.
• Use a 10mm socket and inch-pound torque wrench to tighten the nuts evenly in several passes.
• Torque the mirror mounting nuts to 8 Nm (71 lb-in).
• Do not overtighten the nuts because this can crack the mirror base or distort the door skin.

Step 8: Connect and Test the Mirror

• Connect the mirror harness by hand until its locking tab clicks.
• Reconnect the switch panel temporarily by hand.
• Use a 10mm socket and ratchet to reconnect the negative battery cable.
• Switch the ignition on and test mirror movement, heating, puddle lamp, memory, and blind-spot indicator as equipped.
• Switch the ignition off and disconnect the negative battery cable again with the 10mm socket before reinstalling the door trim.

Step 9: Reseal the Moisture Barrier

• Press the moisture barrier back onto its original adhesive by hand.
• Make sure the barrier is fully sealed around the mirror wiring and along its upper edge.
• Route the harness through every original clip so the window cannot catch it.

Step 10: Reinstall the Door Trim Panel

• Reconnect the door-release cable and all electrical connectors by hand.
• Hang the top of the trim panel over the window ledge, checking that the door-lock stem passes through correctly.
• Align each retaining clip with its hole and press around the panel by hand until all clips engage.
• Replace any bent or broken retaining clips before securing the panel.
• Use an 8mm socket and ratchet to reinstall the door-panel screws. Tighten them only until snug; do not crush the plastic trim.
• Reconnect and press the switch panel into place by hand.

Step 11: Reinstall the Mirror Corner Trim

• Reconnect the tweeter connector by hand if equipped.
• Align the triangular trim panel’s clips and press it straight into place by hand.
• Remove the masking tape and check that the mirror seal sits evenly against the door.

Step 12: Reconnect the Battery

• Use a 10mm socket and ratchet to reconnect the negative battery cable securely.
• Do not overtighten or twist the battery terminal.
• Switch the ignition on and perform one final check of every door and mirror function.

---

✅ After Repair

• ✅ Adjust the mirror through its full range and listen for binding or clicking.
• ✅ Verify the window moves fully up and down without contacting the mirror harness.
• ✅ Check the power lock, window switch, speaker, puddle lamp, heated glass, and blind-spot indicator as equipped.
• ✅ Restore the clock and other settings affected by battery disconnection.
• ✅ To restore one-touch window operation, fully close the window and hold the switch upward for approximately two seconds. Fully lower it and hold the switch downward for approximately two seconds, then repeat if necessary.
• ✅ After rain or washing, check the lower door-trim area for moisture that could indicate an improperly sealed moisture barrier.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹35,000 per mirror, depending on installed features

DIY Cost: ₹7,000-₹25,000 per mirror for parts only

You Save: ₹5,000-₹10,000 by doing it yourself!

Local labor rates commonly run ₹700-₹1,500 per hour. This repair takes a shop approximately 0.7-1.2 hours per mirror, excluding paint work.

---
