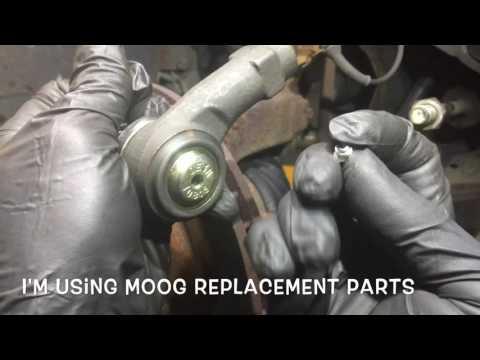

🔧 Accord - Outer Tie Rod End Replacement

The outer tie rod end connects the steering rack to the front steering knuckle. Replace it if the joint has looseness, a damaged dust boot, or causes steering play and uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours per side

Assumption: These instructions cover one front outer tie rod end; replacing both sides is recommended when wear is similar.

---

⚠️ Safety & Precautions

• ⚠️ Support your Accord with jack stands—never work under a vehicle held only by a floor jack.
• ⚠️ Keep the steering wheel centered and do not switch the vehicle to READY mode while working.
• ⚠️ Do not touch any orange high-voltage cables or connectors.
• ⚠️ Never hammer directly on the threaded tie rod stud; use a tie rod separator.
• ⚠️ A professional four-wheel alignment is required immediately after replacement.
• ⚠️ Battery disconnection is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3-ton floor jack
• 3-ton jack stands
• Rear wheel chocks
• 19mm impact socket
• 17mm socket
• 22mm open-end wrench
• 14mm open-end wrench
• 1/2-inch drive breaker bar
• 3/8-inch drive ratchet
• 10-150 ft-lb torque wrench
• Outer tie rod end puller (specialty)
• Needle-nose pliers
• Wire brush
• Metric tape measure
• Paint marker
• Penetrating oil
• Mechanic's gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1 per side
• Outer tie rod end locking nut - Qty: 1 per side
• Outer tie rod end castle nut - Qty: 1 per side
• Tie rod end cotter pin - Qty: 1 per side

Recommendation: Replace outer tie rod ends in pairs if both have similar mileage or boot deterioration.

---

📋 Before You Begin

• 📋 Park your Accord on firm, level ground and select Park.
• 📋 Apply the parking brake and place wheel chocks behind both rear wheels.
• 📋 Keep the key away from the vehicle so the hybrid system cannot be activated accidentally.
• 📋 Measure between consistent tread grooves on the front tires. Record the measurement as a temporary toe reference.
• 📋 Arrange a four-wheel alignment before driving farther than necessary after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 19mm impact socket and 1/2-inch drive breaker bar to loosen the five wheel nuts about one-quarter turn.
• Do not remove the wheel nuts while the tire is still supporting the vehicle.

Step 2: Raise and Support the Vehicle

• Position the 3-ton floor jack at the approved front-center lifting point.
• Raise the front and place 3-ton jack stands under the reinforced side support points.
• Lower the vehicle gently onto the stands and confirm it is stable.

Step 3: Remove the Wheel

• Use the 19mm impact socket and 1/2-inch drive breaker bar to remove the wheel nuts.
• Remove the wheel and place it flat away from the work area.

Step 4: Record the Existing Tie Rod Position

• Use a wire brush to clean the exposed threads between the outer tie rod end and locking nut.
• Use a paint marker to mark the locking nut and threaded inner tie rod.
• Use a metric tape measure to record the distance from the locking nut to a fixed point on the tie rod end.
• Count every complete turn during removal. This keeps the alignment close enough to reach an alignment shop.
• Photos help preserve the original position.

Step 5: Loosen the Locking Nut

• Apply penetrating oil to the locking nut and exposed threads. Allow several minutes for it to soak.
• Use a 22mm open-end wrench on the locking nut while holding the tie rod end with a 14mm open-end wrench.
• Turn the locking nut only enough to break it loose. Do not move it farther than necessary.
• The locking nut is also called a jam nut; it locks the alignment adjustment in place.

Step 6: Remove the Cotter Pin and Castle Nut

• Use needle-nose pliers to straighten and remove the cotter pin from the tie rod stud.
• Use a 17mm socket and 3/8-inch drive ratchet to remove the castle nut.
• Discard the old cotter pin. Never straighten and reuse it.

Step 7: Separate the Tie Rod End

• Place the outer tie rod end puller around the steering-knuckle arm and tie rod stud.
• Tighten the puller until the tapered stud releases from the knuckle.
• A tapered stud is cone-shaped and locks tightly into the steering knuckle when its nut is tightened.
• Do not strike the stud, threads, brake rotor, or aluminum steering knuckle.

Step 8: Remove the Old Tie Rod End

• Use the 22mm open-end wrench to keep the locking nut near its marked position.
• Turn the outer tie rod end counterclockwise by hand and count the exact number of complete turns required to remove it.
• Compare the old and new parts. The stud taper, thread direction, overall length, and boot position must match.

Step 9: Install the New Tie Rod End

• Thread the new outer tie rod end onto the inner tie rod by hand using the same number of turns recorded during removal.
• Align it with the measurement and paint reference recorded earlier.
• Do not force the threads. If the part does not turn easily, remove it and restart it straight.

Step 10: Connect the Tie Rod End to the Knuckle

• Insert the new tie rod stud fully into the steering-knuckle arm.
• Install the new castle nut by hand to prevent crossed threads.
• Use a 17mm socket and 10-150 ft-lb torque wrench to tighten the castle nut to 44 Nm (33 ft-lbs).
• If the cotter-pin holes do not align, tighten the nut only enough to reach the next slot. Never loosen it for alignment.
• Use needle-nose pliers to install and bend the new cotter pin securely around the nut.

Step 11: Tighten the Locking Nut

• Hold the tie rod end with the 14mm open-end wrench so it does not rotate.
• Use the 22mm open-end wrench with the 10-150 ft-lb torque wrench and a suitable wrench adapter to tighten the locking nut to 54 Nm (40 ft-lbs).
• Keep the wrench adapter at 90 degrees to the torque wrench so the torque value remains accurate.

Step 12: Reinstall the Wheel

• Install the wheel and start all five wheel nuts by hand.
• Use the 19mm impact socket and 3/8-inch drive ratchet to snug the nuts in a star pattern.
• Use the 3-ton floor jack to raise the vehicle, remove the 3-ton jack stands, and lower the tire to the ground.
• Use the 19mm impact socket and 10-150 ft-lb torque wrench to tighten the wheel nuts in a star pattern to 108 Nm (80 ft-lbs).

---

✅ After Repair

• ✅ With your Accord stationary, switch to READY mode and slowly turn the steering wheel in both directions.
• ✅ Check that steering movement is smooth and the tie rod boot does not twist or contact nearby parts.
• ✅ Confirm that the steering wheel remains reasonably centered during a very short, low-speed test.
• ✅ Stop immediately if the steering pulls sharply, binds, clunks, or the stability-control warning appears.
• ✅ Have a professional four-wheel alignment performed immediately. Counting turns is not a substitute for alignment equipment.
• ✅ Recheck the wheel-nut torque to 108 Nm (80 ft-lbs) after approximately 80-100 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹7,000-₹15,000 per side (parts, labor, and alignment)

DIY Cost: ₹2,500-₹7,000 per side (parts and alignment)

You Save: ₹4,500-₹8,000 by doing it yourself!

Local labor rates vary. This repair takes a shop approximately 1-1.5 hours per side, followed by wheel alignment.

---
