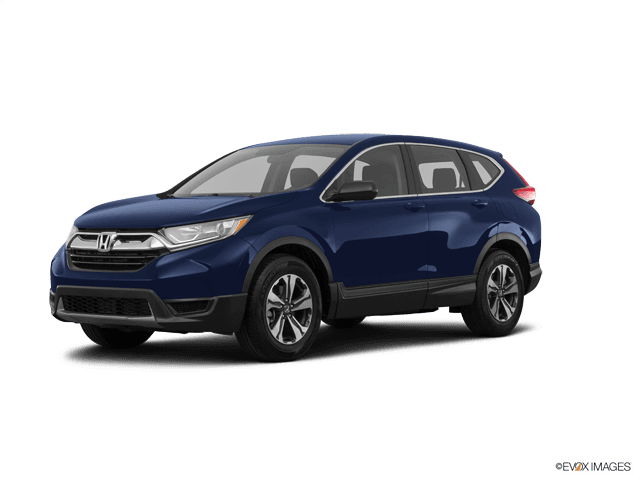

🔧 CR-V - CVT Transmission Fluid Change

This service drains and refills the continuously variable transmission, or CVT, with genuine Honda-specification fluid. Your CR-V requires Honda HCF-2 CVT fluid; conventional automatic-transmission fluid can damage the transmission.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

Assumption: This procedure is for a stock U.S.-market AWD CR-V with the 2.4L engine.

---

⚠️ Safety & Precautions

• ⚠️ Keep your CR-V level while draining and checking the fluid.
• ⚠️ Support the vehicle with four jack stands. Never work beneath a vehicle supported only by a jack.
• ⚠️ Wear gloves and safety glasses because warm transmission fluid can burn skin.
• ⚠️ Use only Honda HCF-2 CVT fluid. Do not use Honda ATF DW-1, universal CVT fluid, or additives.
• ⚠️ Perform a drain-and-fill only. Do not use a pressurized transmission-flush machine.
• ⚠️ Do not run the engine while the CVT is empty or underfilled.
• ⚠️ The battery does not need to be disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 2-ton minimum
• Four jack stands rated 2-ton minimum
• Wheel chocks
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench rated 10-80 ft-lbs
• 3/8-inch drive 6-inch extension
• 10mm socket
• 12mm socket
• 17mm socket
• Small flat-blade screwdriver
• Trim-clip removal tool
• Fluid-transfer pump with 3/8-inch hose
• Drain pan with 8-quart capacity
• Graduated 5-quart measuring container
• Digital kitchen scale rated 15 pounds minimum
• Long-neck funnel
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Honda HCF-2 CVT fluid - Qty: 5 US quarts
• CVT drain-plug sealing washer - Qty: 1
• CVT level-check plug sealing washer - Qty: 1
• CVT fill-plug seal - Qty: 1

---

📋 Before You Begin

• 📍 Drive your CR-V for approximately 10 minutes so the CVT fluid becomes warm, not extremely hot.
• 🅿️ Park on a firm, level surface. Apply the parking brake and place the transmission in Park.
• 🧱 Place wheel chocks securely before lifting the vehicle.
• 📏 If lifting is necessary, raise and support all four corners at equal height so your CR-V remains level.
• 🧴 Keep every container and pump hose clean. A small amount of dirt can damage a CVT.
• ♻️ Prepare a sealed container for the used fluid and take it to an authorized oil-recycling facility.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Secure Your CR-V

• Use the floor jack at the approved center lifting points, then support all four corners with four jack stands.
• Confirm the vehicle is level and stable before going underneath it.
• Gently push the body from the side. Stop if any stand shifts.

Step 2: Remove the Lower Cover

• Use a trim-clip removal tool and small flat-blade screwdriver to release the plastic clips from the lower splash shield.
• Use a 10mm socket and 3/8-inch drive ratchet to remove any retaining bolts.
• Lower the shield carefully and arrange the fasteners in their removal order.

Step 3: Loosen the CVT Fill Plug First

• Locate the fill plug on the upper portion of the transmission case.
• Use a 17mm socket, 6-inch extension, and 3/8-inch drive ratchet to loosen the fill plug.
• Do not drain the transmission until you know the fill plug can be removed.
• Remove the fill plug and inspect its seal.
• Loosen the fill plug before draining.

Step 4: Drain the Old CVT Fluid

• Place the 8-quart drain pan beneath the CVT drain plug.
• Use the square end of the 3/8-inch drive ratchet directly in the drain-plug recess to loosen the plug.
• Remove the plug carefully by hand and allow the fluid to drain completely.
• Allow at least 10 minutes for the flow to slow to an occasional drip.
• Dark fluid may indicate age, but metallic chunks or a strong burned odor can indicate internal damage.

Step 5: Measure the Drained Fluid

• Pour the used fluid into the graduated measuring container and record the amount.
• If the container markings are unclear, use the digital kitchen scale: one US quart of HCF-2 weighs approximately 1.8 pounds.
• A normal AWD drain-and-fill is typically near 4.3-4.5 US quarts, but the final level check is authoritative.
• Investigate for leaks if substantially less fluid drains out.

Step 6: Install the Drain Plug

• Clean the drain plug and its seating surface with shop towels.
• Install a new CVT drain-plug sealing washer with the flat side facing the transmission case.
• Thread the plug in by hand to prevent cross-threading.
• Use the 3/8-inch drive torque wrench to tighten the drain plug to 49 Nm (36 ft-lbs).

Step 7: Add New HCF-2 Fluid

• Use the fluid-transfer pump with 3/8-inch hose to add Honda HCF-2 through the fill opening.
• Add approximately the amount measured during draining. Do not add all five quarts automatically.
• If the transmission was not known to be underfilled, begin with approximately 4.3 US quarts.
• Install the fill plug and its new seal by hand.
• Use the 17mm socket and 3/8-inch drive torque wrench to tighten the fill plug to 44 Nm (32 ft-lbs).

Step 8: Circulate the New Fluid

• Lower your CR-V to level ground using the floor jack, or leave it level on four jack stands.
• Apply the brake pedal firmly and start the engine.
• With the engine idling, move the selector slowly through Park, Reverse, Neutral, Drive, and Sport.
• Pause for approximately three seconds in each position, then return the selector to Park.
• Repeat the sequence once, then switch the engine off.

Step 9: Check the CVT Fluid Level

• Perform this check promptly while your CR-V is level and the fluid remains warm.
• Place the drain pan beneath the level-check plug on the side of the CVT case.
• Use a 12mm socket and 3/8-inch drive ratchet to remove the level-check plug.
• The level is correct when a small stream emerges and then slows to a drip.
• If no fluid emerges, reinstall the plug temporarily. Use the fluid-transfer pump to add HCF-2 through the fill opening in 0.1-quart increments, repeating the check after each addition.
• Allow excess fluid to drain until it becomes a slow drip. Do not intentionally overfill the CVT.

Step 10: Install the Level-Check Plug

• Fit a new sealing washer to the level-check plug.
• Thread the plug into the transmission case by hand.
• Use the 12mm socket and 3/8-inch drive torque wrench to tighten the level-check plug to 20 Nm (15 ft-lbs).
• Use shop towels to clean all fluid from the transmission case.

Step 11: Reinstall the Lower Cover

• Position the lower splash shield and install its clips with the trim-clip removal tool.
• Use the 10mm socket and 3/8-inch drive ratchet to install the retaining bolts snugly.
• Do not overtighten the small bolts or plastic fasteners.
• Use the floor jack to remove the four jack stands and lower your CR-V completely.

---

✅ After Repair

• ✅ Start the engine and confirm there are no warning lights or unusual CVT noises.
• 🔍 With the engine off, inspect the drain, fill, and level-check plugs for leaks.
• 🚙 Take a gentle 10-minute test drive. Verify smooth engagement in Reverse and Drive.
• 🛑 Recheck underneath for leaks after the test drive and again the following day.
• 🧾 Record the mileage and fluid type. Under normal conditions, Honda’s Maintenance Minder code 3 indicates transmission-fluid service.
• ♻️ Transfer the used fluid into sealed containers for responsible recycling.

---

💰 DIY vs Shop Cost

Shop Cost: ₹9,000-₹15,000 (parts + labor)

DIY Cost: ₹5,500-₹9,000 (fluid and seals)

You Save: ₹3,500-₹6,000 by doing it yourself!

Local labor and imported Honda HCF-2 prices vary. This service takes a shop approximately 0.8-1.0 hour.

---
